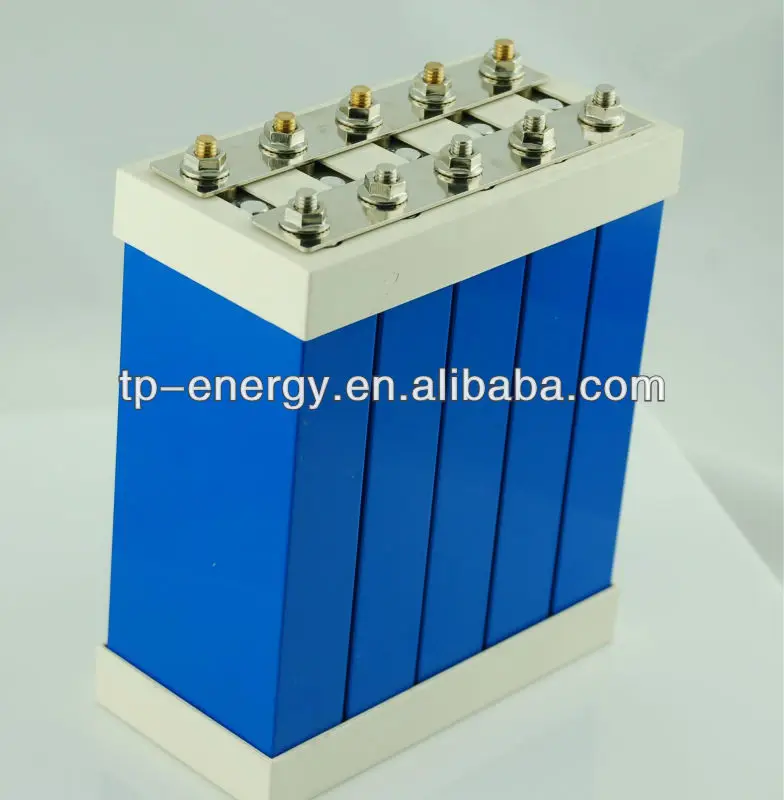

TOPBAND High quality 3.2V 100Ah prismtic LiFePO4 battery cell

FOB Reference Price:Get Latest Price
US $1-125 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TOPBAND
Model Number:
TB-32100F
Type:
LiFePO4 battery cell, LiFePO4 battery cell
Nominal Voltage:
3.2V
Size:
178(H)* 75(W) * 145(L) mm, 178(H)* 75(W) * 145(L) mm
Nominal Capacity:
100Ah
Model:
TB-32100F
Normal votlage:
3.2V
Working voltage range:
2.3V ~3.65V
Normal capacity:
100Ah
Weight:
3.25kg
Max discharge current:
500A
Continuous discharge current:
100A
Working temperature:
-20℃~65℃
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
With black bag and standard international package, and every pack will have the box.
Port
shenzhen
Lead Time :
7~ 10days after the order confirmation

3.2V 100Ah LiFePO4 battery cell
1.Used for high capacity battery packs
2.Prismatic battery cell shape
3.UN38.3,UL,CE approvel



TOPBAND standard 3.2V 100Ah LiFePO4 battery cell for cars



1. SPECIFICATION:



1ModelTB-32100F
2.TypeLiFePO4 battery cell
3.Normal voltage3.2V
4.Normal capacity100Ah
5.Working voltage range2.3V~3.65V
6.Max discharge current(Amps)300-500Amps
7.Continuous discharge current100Amps
8.Max dimension (mm)178(H)* 75(W) * 145(L) mm
9.Weight3.25kg
10.Working temperature:0°C~45°C
 11.  Discharging Temperature-25°C~60°C
 12. Storage temperature-20°C~65°C
 13. Application Electric cars



LiFePO4 battery cel- 2.jpgLiFePO4 battery cel -3.jpg





Main Features:





1. Structure



 The battery cells arePrismatic shape with Aluminum case





 2. Longer Battery Life cycles



This LiFePO4 battery cell have a nominal life of not less than 2000cycles (charges/discharges)





 3. No Pollution for our environment



All of our raw material have no pollution for the environment.





4. BMS system



 With over 16 years BMS experiences, there are many BMS design solution for customers choose.If you need the metched BMS for your battery packs, pls do not hesitate to ask for us.





 5. Used for your LiFePO4 battery packs





Before you designed your battery packs, pls consult with us your discharge current, max discharge current, working voltage range, and the packs structure so that we can support you the one-stop solution!
