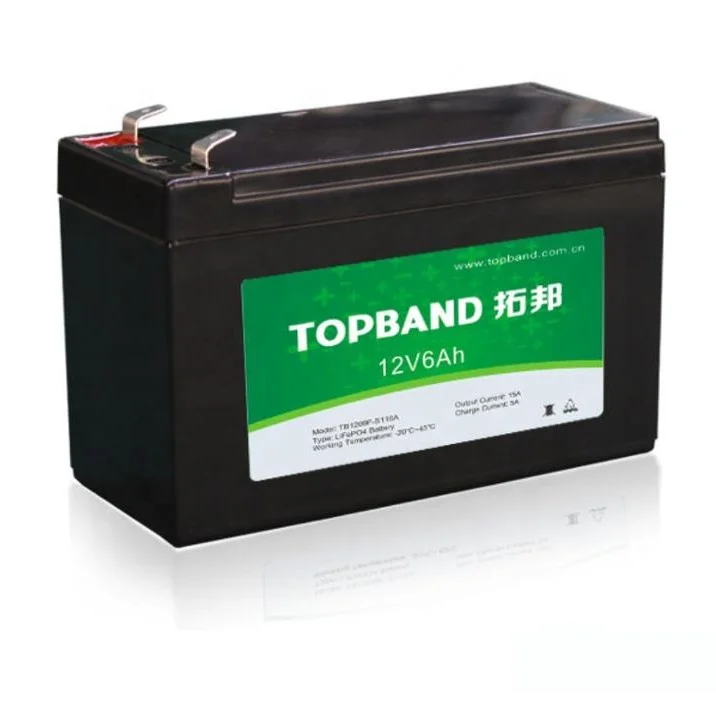

Specification
NO. | Items | Characteristics | Testing Methods | |
1 | Nominal Voltage | 12V | Follow GB/T 18287-2013 QC/T743-2006 | |
2 | Nominal Capacity | 6Ah | Follow GB/T 18287-2013 QC/T743-2006 | |
3 | Minimum Capacity | 5.7Ah | Follow GB/T18287-2000 QC/T743-2006 | |
4 | Battery internal Impedance | Internal Impedance≤60mΩ
| Internal Impedance Testing Machine( HIOKI 3555,1kHz ) | |
5 | Shipment Voltage | 12.8-13.6V | Multi-meter | |
6 | Dimension | Length | 150±1.0mm | Vernier caliper |
Widh | 65±1.0mm | |||
Height | 95±1.0mm | |||
gross weight | Approx:0.83±0.1kg | electronic scale | ||
7 | Working Temperature | Charge | 0~45℃,45~85%RH | Temperature & Humidity Instruments |
Discharge | -20~55℃,45~85%RH | |||
8 | Storage Temperat re & H midity Range | Short: above one month | -20~+55℃,45~85%RH | Temperature & Humidity Instruments |
Medium: above three months | 0~+45℃,45~85%RH | |||
Long:above one year | +5~+30℃,45~85%RH | |||
9 | charg current | 6A(1C) | Multi-meter | |
10 | Allowed maximum continuous discharge current | 6A(1C) | Multi-meter | |
11 | Allowed maximum reverse charge voltage | NO Allowed | / | |
12 | Allowed maximum charge voltage | 14.6±0.1V | Multi-meter | |
13 | Discharge cut-off voltage | 9±1V | Multi-meter | |
Application
E-bike, E-scooter, LED light, UPS, emergency power supply, small meidcal equipment, golf cart, etc.
Characteristic:
1. Green: Non-Toxic, comfort to RoHS.
2. Long cycle life: > 2000 cycles, while Sealed Lead Acid batteries only 750 cycles and NiMh batteries only 500 cycles)
3. Safety
The safest battery in the world till now, which does not burn with 30V charge voltage and it does not explore when you puncture the battery. UL approved.
4. Light weight and smaller dimension
The dimension is smallest and the weight is lightest when compare with other battery. 1/3 weight ofSLA, 65% weight of NIMH.
5. Great capacity and more powerful, rechargeable battery
High discharge current, 1C continuous, 3C pulse for normal cells and 20 C for special design
We can install many single cells in series and in parallel and it can fully discharge
6. Good thermal stability: - 20°C to 60°C
7. Back fast charge, good consistence, no memory effect, can equip battery charger.
Can be recharged anytime, no reduction of the capacity
7. Widely application, customize solutions, mass production, OEM/ODM/buyer label provided, factory passed TS 16949, ISO 9001:2008.
• We will reply your enquiry wihthin 24 hours.
• Design, research, customized energy solutions available
• Provide trial production and mass production
• Quick delivery: 2~3weeks for samples, 4~6weeks for mass production
• One stop before sales servie & after sales service & technical support
• Warranty: 2-year full service since shipping.
Shenzhen Topband Co., Ltd. was registered in so called “China Silicon Valley”, Shenzhen Hi-tech Industrial Park in 1996, and got listed in Shenzhen Stock Exchange ( the stock code as 002139) in 2007.
After years of rapid development, now Topband takes lithium battery as the core technology and has become one of the leading suppliers of lithium battery solutions in China, focusing on nano lithium iron phosphate/ LiFePO4 technology for EV, RV/ caravan, marine, motorcycle, golf cart / trolly, UPS, solar storage, medical, floor scrubber, industrial, commercial use, etc.
If any interest, do not be hesitate to contact with us! Hope we could be your good partner!
