Quick Details

  • Place of Origin: China (Mainland)
  • Brand Name: TOPBAND
  • Model Number: TB-12300F
  • Type: Li-Ion, LiFePO4
  • Nominal Voltage: 12V
  • Size: Prismatic, 550x380x410mm
  • Nominal Capacity: 300Ah
  • Model: TB-12300F
  • Voltage: 12V
  • Capacity: 300Ah
  • Weight: Approx.68kg
  • Assemble: Different voltage & capacity
  • Certification: CE,RoHS
  • Pack: More pack method

Packaging & Delivery

Packaging Details Standard exporting package
Delivery Time 10-35 days

The 12V300Ah LiFePO4  Battery with BMS Protection, used in Solar/Wind system and Home Application, UPS ,Power bank etc.



Specification:



Model No.

 TB-12300F

Voltage:

 12V

Capacity:

 300Ah, 3600Wh

Chemistry:

 LiFePO

Weight:

 11.3lbs (68kg)

Dimensions:

 21.8"(L) x 15.2"(W) x 16.2"(H), [550(L) x 380(W) x410(H)]mm

Life Cycles:

 2,000 @ 80% DOD

BMS

YES (Internal)

Max Charge Voltage:

 14.6V

Discharge Cut-off

Voltage:

 8.2V



Max Charge Current:

 100A

Max Discharge Current:

 350A

Operating Temperature:

 -22°F to +140°F, (-30°C to +60°C)






Key Features:

l         Quick recharge

l         High rate discharge

l         Wide operating temperature range

l         Super long cycle life

l         Excellent safety performance

l         High consistency

l         Low internal resistance

l         High consistency

l         Low self-discharge

l         No memory effect

l         Environment-friendly






Safety:



       • Internal over charge protection.

 • Internal low voltage protection.



       • Internal short circuit protection.



       • Internal cell balancing.



       • Internal temperature monitor.



       • No presence of toxic substances.



Charging:



This battery is intended to be used as a direct replacement for lead acid batteries used in e-vehicles ,e-car systems.  It is best for the "Smart Energy" battery not to be trickle charged but to use advance chargers that turns OFF charging current when the battery is completely charged at 14.6V.  TOPBAND sells "Smart" chargers for lithium batteries.





Lifetime:



       • Expected number of charge cycles over 2,000 times.



       • Self-discharging rate only 2% per month.



       • Expect 8-10 years of battery life that will reduce your operating cost by half



          compared to lead acid.







Warranty: 2 Year Full Replacement Warranty



Applications

l         Solar power batteries(Outdoor,Indoor,Camping)

l         Marine / RV / Motorhome / Caravan / Travel trailer batteries

l         Golf trolley / Golf cart batteries

l         Electric Vehicle / Motorcycle / Scooter / Sweeper / Cleaner cars /Forklift batteries

l         UPS / Backup / Portable power batteries

l         Communication station batteries

l         Industrial batteies etc.





Service provided By Us:



  • Specificed professional service centre
  • Leading time: samples 3-15 working days, 1000pcs below 10-30 working days
  • Quick response to clients' enquiries whithin 24hrs
  • Exclusive and unique solution can be provided to our clients by our experienced and  professional engineers and researchers
  • Solve the problems be prompt if anything wrong with our products' quality



Why choose Topband?

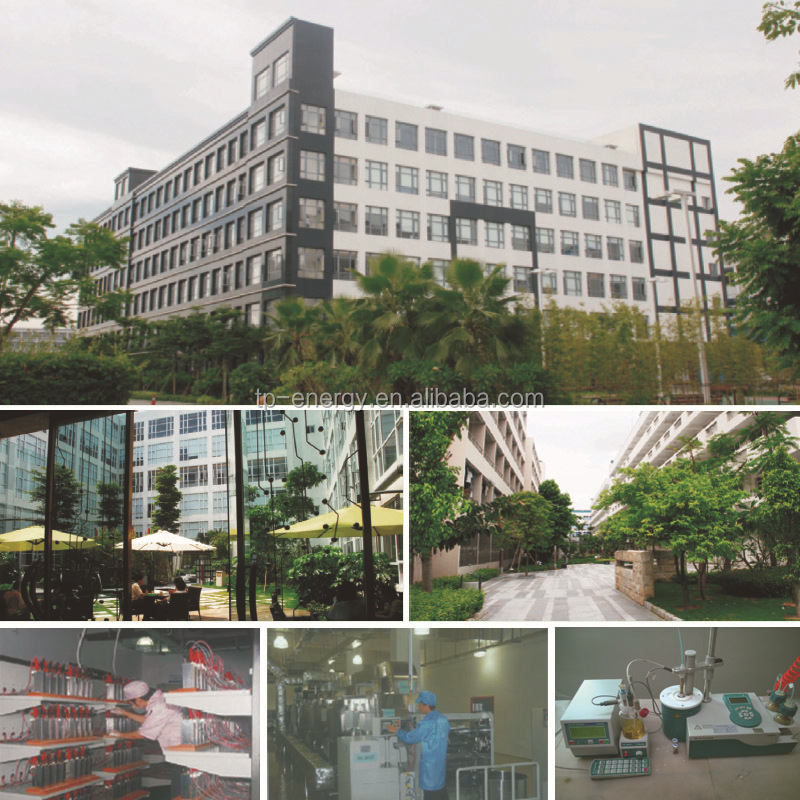

 Shenzhen Topband Co., Ltd is one of the leading electronic manufacturers in China which is founded in 1996. In June 2007, it was listed in Shenzhen stock exchange market(Stock code: sz002139). We have passed HSPM QC080000, ISO14001: 2004, ISO9001: 2000, OHSA28001: 2001 system authentication. Certifications:UL,FCC,ETL,CE,RoHS



•  Our main battery include: LiFePO4 battery,Power tools battery,E-bike battery,E-Scooter battery,E-Moto battory,Electric Car battery ,UPS battery,Golf cart battery,E-wheelchair  battery,PDA battery,,Solar System battery,Miner’s LED battery,Electric equipment battery,Emergency lighting battery and etc.



•  There are over 200 R&D engineers and about 3,000 employees in the 50,000 square meters Topband industrial park





Company Information

Why choose Topband?

•  Shenzhen Topband Co., Ltd is one of the leading electronic manufacturers in China which is founded in 1996. In June 2007, it was listed in Shenzhen stock exchange market. Have passed HSPM QC080000, ISO14001: 2004, ISO9001: 2000, OHSA28001: 2001 system authentication. Certifications:UL,FCC,ETL,CE,RoHS



•  There are over 200 R&D engineers and about 2,000 employees in the 50,000 square meters Topband industrial park.







Advantages

l         World-leading nano LiFePO4 anode material

l         Strategic alliance with the major materials and equipment suppliers to make full use of the

technology and resources

l         Improve the performance and safety of batteries with ingenious design

l         Ensure the quality of the batteries and achieve mass production with advanced manufacturing technique
