Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: TOPBAND
  • Model Number: TB-1260F-02
  • Type: LiFePO4 battery
  • Nominal Voltage: 12V
  • Size: 235(L)*170(H)*190(W)mm
  • Nominal Capacity: 60Ah
  • Battery type: LiFePO4 battery
  • Nominal voltage: 12V
  • Nominal capacity: 60Ah
  • Weight: 8.2Kg
  • Size(L*W*H): 235*190*170mm
  • Working voltage range: 9.2V~14.6V
  • Inside Structure: 4S3P
  • Life cycles: About 2000cycles
  • Warranty: 2 years
  • PVC color: Blue

Packaging & Delivery

Packaging Details: professional package to proection the goods delivery!
Delivery Detail: 10days after the order confirmation

Specifications

12V battery pack

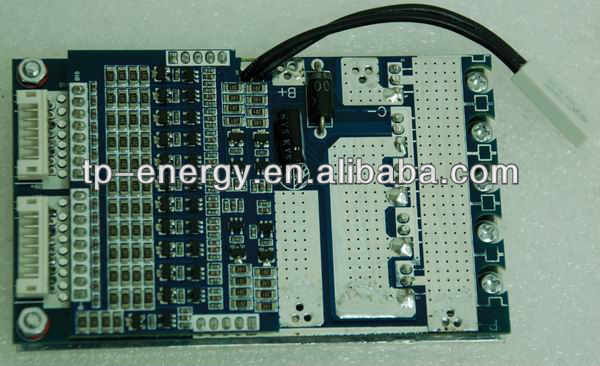

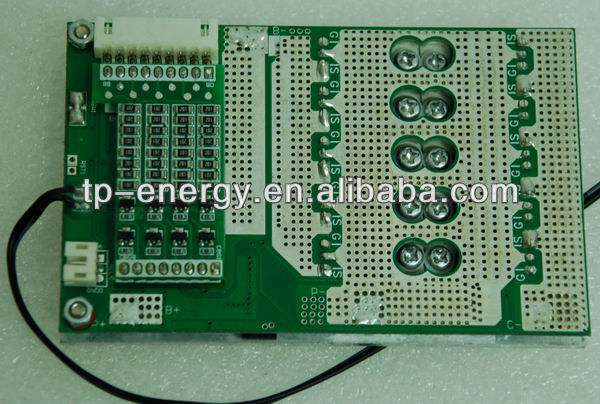

1.Built-in BMS
2.Longer lifespan 2000 cycles
3.Use 3.2V 20Ah cells
4.16 years BMS produce experiences

Smart energy design!!12V BATTERY PACK


12V battery pack
1.Built-in BMS
2.Longer lifespan 2000 cycles
3.Use 3.2V 20Ah cells
4.16 years BMS produce experiences



SPECIFICATION:

1                      Type                                                        LiFePO4 battery
2.ModelTB-1260F-02
3.Normal voltage 12V
4.Normal capacity60Ah
5.Max discharge current60Amps
6.Continous discharge current30Amps
 7 Max charging current 20Amps
8.Working voltage range:8V~14.6V
9Size:235x170x190mm
10.weight:About 8.0Kg
11.Charging temperature -20°C~45°C
12Discharging Temperature -25°C~60°C
13Storage temperature -30°C~45°C
14Cycle lifeAbout 2000 cycles to 80% with 100% DOD under 20 °C~25°C

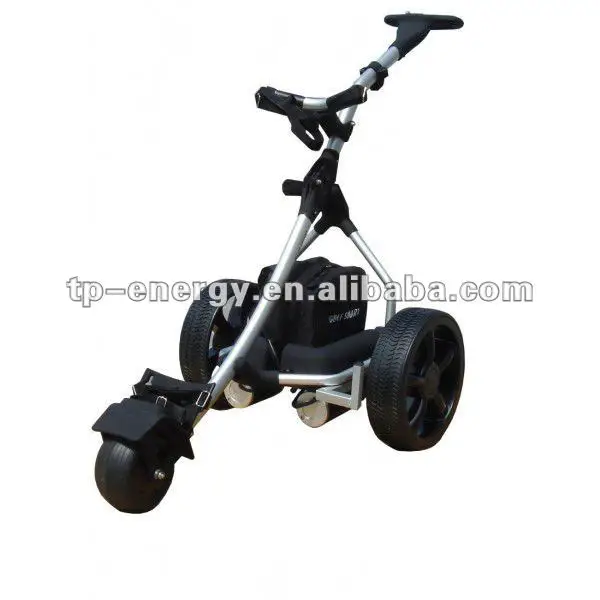

15Application Golf trolleys, UPS, Motorcycle, E-scooters, Electric tricycle, LED lights, Robots, Medical equipments



Main Features:





*1. Built-in Battery Management.



This LiFePO4 12V battery pack have a built-in Electronic battery Management system(BMS), this system monitors every individual cell ensuring that the your battery can not be over-discharged or over charged.





*2. Longer Battery Life



This LiFePO4 12V battery have a nominal life of 2000cycles (charges/discharges) compared with a standard lead-acid battery which is rated for up to 200cycles. This means this LiFePO4 12V battery will complete 10x more rounds of Normal Lead-acid battery in same voltage and capacity.





*3. More Usable Power



Over 90% of the charge in this LiFePO4 12V battery pack is available to power your equipments. This means more usable power from this battery, making it much more efficient in powering your equipments



*4.  75% Lighter



This LiFePO4 12V battery pack weights only 6.5kg, light enough to pick up with one hand!





*5. Shorter charge time

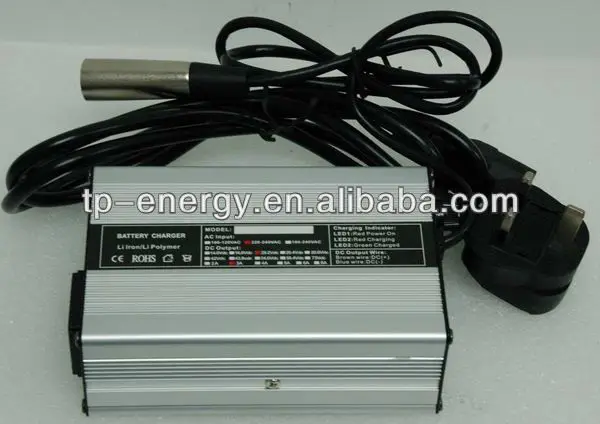

This LiFePO4 12V battery pack have specially designed, electronically controlled chargers which will charge it in less 5 hours.



*6. Traditional Lead-acid/AGM/VLAR battery replacement



This LiFePO4 12V battery can be replaced for traditional Lead-acid/AGM/VLAR battery!





Pls see our customer's feedback for this 12V battery pack:

Hello Sophia,
yes I received the batteries yesterday. thanks. have got an excellent result with my electric outboard
motor. this LiFePO4 12V 60ah battery lasts far longer than my 80ah agm lead acid type. In fact the battery still had
much power left in it after I had run the boat about 3 times longer than I could with the lead acid type.
my electric outboard motor shows 4 led lights when the battery is full. with the lead acid type it only ever
showed 3 lights on a fully charged battery. with your battery it showed 4 lights and even when I had
finished using the electric outboard it was still showing 4 lights.

I can see the reason for this result. the lead acid battery only shows 13 volt when fully charged. Your battery shows can
more than 13.5 volts when fully charged. And it wasn't much lower than this when I finished using the
motor. And if the battery be discharged to 8 volts this means there was still plenty of power in the battery.
congratulations to your company for this fantastic battery.
 Thanks again!/Peter Clarke
