12V 100Ah LiFePO4 battery with built-in BMS for solar system Smart Power!

FOB Reference Price:Get Latest Price
US $565-580 / Packs | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Topband
Model Number:
TB12100F
Composed Type:
4S5P
Type:
Li-Ion
Components:
LiFePo4
Size:
327*172*216mmor as your require
Voltage:
12V
Weight:
15.5kg
Nominal Capacity:
100AH
Application:
Solar system/solar street light/fishing boat
Green energy:
Zero Emission
Color:
blue PVC/SLA case
warranty:
2 years
package:
standard package
SupplyAbility
SupplyAbility:
50 Pack/Packs per Day
Packaging & Delivery
Packaging Details
standard package,soft pvc,plastic case,iron case or as your own request
Port
FOB shenzhen
Lead Time :
Within 20-25 days after payment

Specifications

UL,ROHS Approved
High thermal stability&intrinsic safety
Long cycle life
No memory effect
High performance

{12v 100ah }.jpg



Application: 12V 100Ah Automobile,  Truck, and SUV battery, the best

replacement of Seald Lead Acid (SLA) battery and NIMH battery.

With 1/3 weight, smaller dimension, but 8 times cyclelife than SLA batteries.

Standard and custom battery solution are provided!





lithium batteries for solar systems 12v 100ah

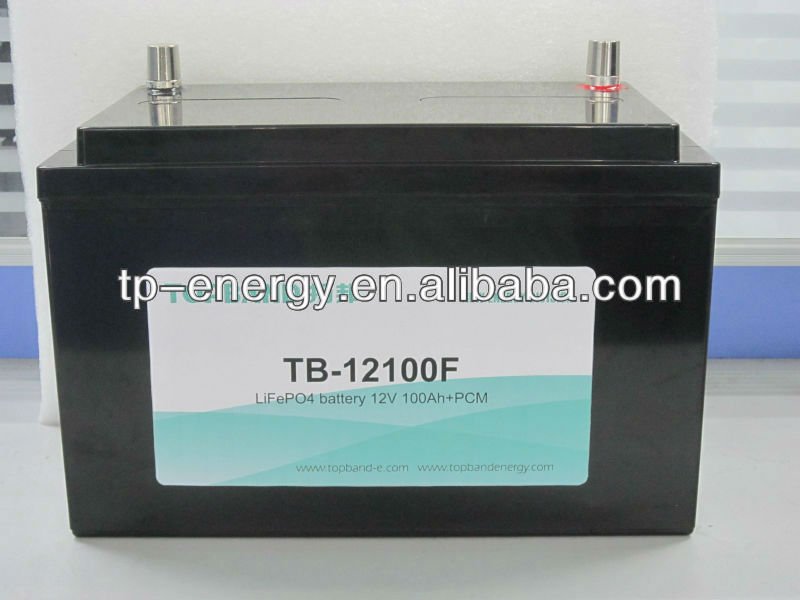

Model:TB-12100F
TypeLiFePO4 battery with PCM
Nominal voltage: 12.8V
Typical capacity100Ah
Internal Impedance(1kHz AC)<60mΩ
Max Charge voltage14.6±0.05V
Discharger cut-off voltage9.2±0.05V
Max charge current50A
Max continuous discharge current100A
Max pulse discharge current350A (2s)
Charging temperature0°C~45°C
Discharging temperature-20°C~60°C
Storage temperature-20°C~45°C
About 2000 cycles to 80% with 100% DOD under 20 °C~25°C
Size(L*W*H)327*172*216mm
Weight:approx.15.5kg
Application:Forklift, clean car, Bus,solar and energy systems,attractions tour,hybrid vehicle and so on
We can offer model: 12V 80Ah



 12v 100ah

Advantages



1>Fast charging

 Can loading 90% capacity in 20min

2>High rate discharge

10C discharge ratio at normal temperature95%*0.5C discharge

3>Excellent performance at H-L temperature

Discharge capacity ratio at -20°C/0.2°C75%(discharge capacity at 25 ≥ /1C)

Discharge capacity ratio at -40°C/0.2°C60%(discharge capacity at 25 ≥ /1C)

4>Long cycle life

Capacity remaining after 2000 cycles ≥ 80% of initial capacity at 100% DOD

5>Low Impedance

Impedance of 20AH cell with welding process can be controlled within 2.5mΩ

6>Single battery cell ac impedance 2.5mΩ

7>High energy density

Normal energy density 115Wh/kg,High energy density 125Wh/kg

8>Low self-discharge

Storage :28 days at 20°C,Capacity remaining 95%

Storage :55 days at 55°C,Capacity remaining 95%

9>High safety

10>IEC62133 and UL1642 safety test approved



Technical Data:

Volatge: 12V

Capacity: 100Ah

Discharge current: 2C

Weight: 15.5kg

Size (Dimension):  327*172*216mm

Normal working temperature: - 20°C ~60°C, can safe work at 70°C





Features



Intrinsic safety:no explosion and will not catch fire under collision ,over charged or short circuit .Achieve UL certificate which guarantees the safety of the Li-lon battery .



Environment-friendly: our battery without any hazardous and noxious substances , do no harm to the environment ,be rest assured to use .



Powerful:It can be able discharge  within minus 20 degree to 65 degree .



Long cycle life:up to 2000 cycle life,would be 8 times life of lead acid and 3 times of Ni-MH,2 times of most lithium batteries .



High rate capability:for all high power output application .



No memory effect:Always ready for charge and use ,with no need to charge after a full discharge .



Wide temperature range : It can be available for use when the temperature ranges from minus 20 degree to 70 degree .Extremely cold and extremely hot weather will not effect its performance .



Application area: mainly used for large EV,light EV,boatsd,planes,small medical instruments and etc .
