48 volt lithium battery pack sale for solar sytem

FOB Reference Price:Get Latest Price
US $100-2,300 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TOPBAND
Model Number:
TB-48120F
Composed Type:
16S6P
Type:
Li-Ion
Components:
LiFePO4
Size:
700*480*220mm
Voltage:
48V
Weight:
77Kg
Nominal Capacity:
120Ah
Application:
golf cart,e-car
Working voltage:
40V~58.4V
Battery type:
lithium battery,lifepo4 battery
Composed:
16S6P
Cycle life:
2000times
Working current:
100A
Pulse current:
450A/3 seconds
Sample:
2sample available
Warranty:
1year
Certification:
CE,ROHS
SupplyAbility
SupplyAbility:
5000 Set/Sets per Month
Packaging & Delivery
Packaging Details
1,international standard packing
2,customise available
Port
Shenzhen
Lead Time :
10-45days upon confirmed order

Specifications

48 volt lithium battery pack
1)16years experience
2)2 year warranty
3)1/3 weight of SLA golf cart
4)ODM/OEM,CB/UL

Description:

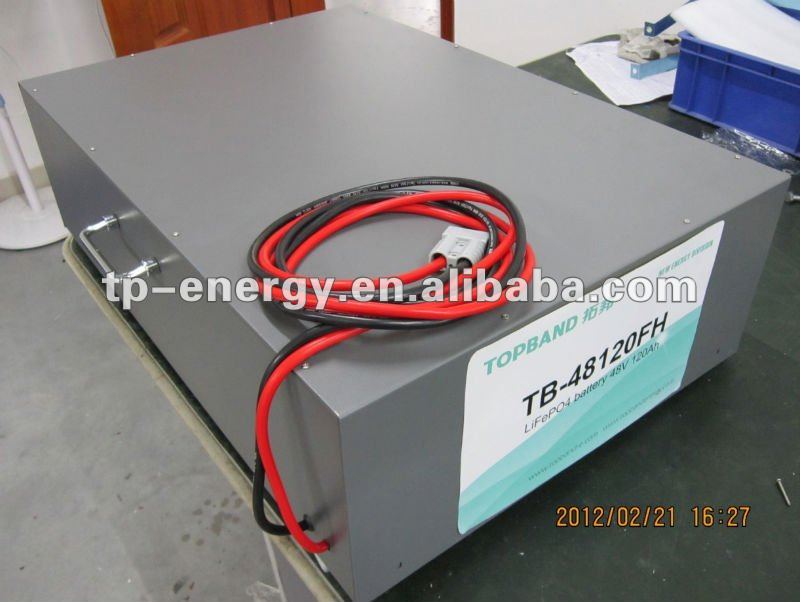

New 48V120Ah lifepo4 battery for golf cart,matched with 58.4V 2~20A charger,in built BMS protection of over charge/discharge,over current/temperature,short circuit,etc.

Specification:

Model:TB-48120F
Type: LiFePO4 battery
Nominal voltage: 48V
Typical capacity: 120Ah
Max continous discharge current : 100A
Max pulse discharge current : 450A/3 seconds
Size: 700*480*220mm
Weight:approx.77Kg
Charging temperature:0°C~45°C
Discharging temperature-20°C~60°C
Storage temperature5°C~35°C
About 2000 cycles to 80% with 100% DOD under 20 °C~25°C



Features:

  • Fast charge rate
  • Enables to utilize the narrow space in your equipments
  • Twice to four times the service life of lead-acid batteries
  • More lighter than lead acid battery light 1/5 on average
  • Rectangular battery packing boxes are made of steel which anti-piercing, extrusion and water-resistant
  • Each battery pack configured with individual battery management system to monitor and control output current, voltage and temperature of batteries
  • BMS installed in packing box compartment in order to prevent any physical damage to BMS when moving
  • Available in various sizes
  • Configured with communication interface- CANBUS protocol, can be contacted with the commputer.
  • Environmentally friendly





Latest  !!!! 48v solar system battery with 60ah/100ah/200ah



48V120Ah battery

58.4V15A Charger




Why choose Topband?



Shenzhen Topband Co., Ltd is one of the leading manufacturers in China which is founded in 1996 ( stock code:002139).  Have passed HSPM QC080000, ISO14001: 2004, ISO9001: 2000, OHSA28001: 2001 system authentication. Certifications:UL,FCC,ETL,CE,RoHS

•  Our battery main application : Power tools, Auto start , E-bike ,E-Scooter ,E-Moto ,Golf cart ,E-wheelchair ,PDA,Solar System,Electric equipment ,Emergency lighting and etc.

•  There are over 350 R&D engineers and about 3,000 employees in the 70,000 square meters Topband industrial park

Your sucess is our business!

Give you the specific battery pack within 24hours according to your requirements

One-stop battery solution with advanced nano lifepo4 battery cells,PCM,BMS,casing and matching charger
