international standard package,except for your special requirement
10~20 working days upon confirmed order
48v lithium battery
2,High quality,light weight
3,2 years warranty
4,ODM/OEM solution,BMS built in
Max continous discharge current :
Max pulse discharge current :
Work voltage range:
About 2000 cycles to 80% with 100%
DOD under 20 °C~25°C
Smart DC UPS battery with Lithium phosphate battery cell(1U/3U)
TOPBAND Lithium Iron Phosphate (LiFePO4)battery is the ultimate in weight versus power technology. This is a drop in replacement for your Lead-acid battery and will require no change to your existing system. It can be placed in anything that uses a sealed lead acid battery . Used for deep cycle or energy storrage replacement lead acid batteries in UPS, Telecom, Marine, Solar etc.
LiFePO4 contains no poisonous lead, no acid, and does not create gasses during charge, as traditional Lead-Acid batteries do. Compared to lead-acid, Lithium Iron Phosphate batteries are also extremely light, have much lower self-discharge, do not sulfate, and are environmentally friendly.
TOPBAND Models have a Battery Management System (BMS). BMS monitors the key operational parameters of each cell during charging and discharging such as voltages, currents and internal temperatures.
There are three main objectives common to all Battery Management Systems (BMS) are:
• Protect the cells or the battery from damage from overcharging or discharging too low.
• Prolong the life of the battery with cell balancing.
• Maintain the battery in a safe operating state.
Because of its light weight, safety, excellent thermal stability, good electrochemical properties and high specific capacity is this application of the material very well received.
Dimensions equal to the standard battery for direct replace.
1.Long life, large capacity and good shock resistance
2.Low self-discharge and good discharge performance at low temperature
3.Strong charging acceptance and quick-charging capability
4.Strong over-discharge resistance and charge retention
5.Maintenance-free and no acid or water for maintenance in usage
6.Excellent large current discharge performance, and have obvious advantages in startup and climbing
7. High temperature performance
8. Environmental friendly
9. Lighter weight smaller size
10.Most safe no explosion no fire
• Internal over charge protection. • Internal low voltage protection.
• Internal short circuit protection.
• Internal cell balancing.
• Auto Restart function. • No presence of toxic substances.
• Expected number of charge cycles over 2,000.
• Self-discharge rate only 2% per month.
• Expect 8-10 years of battery life that will reduce your operating cost by half compared to lead acid.
2 Year Full Replacement Warranty including battery.
This batteries are to be used for UPS or energy storage applications and NOT for engine starting applications.Unlimited packs in parallel at 4P to 200Ah.

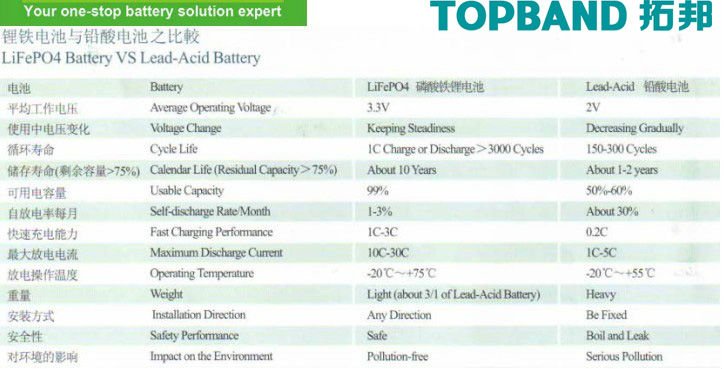

ADVANTAGES (LITHIUM VS LEAD ACID)
• Shenzhen Topband Co., Ltd Founded in 1996 with headquarter in Shenzhen(stock code:002139),is a professional intellectual controller and lithium battery service manufacturer in China.Topband keeps steady growing with 5branches and one subsidiary in the world which are Shenzhen,Hangzhou,Chongqin.In2009,Topband started her first overseas branch in Turkey.Nowadays,Topband has annual revenue about 150million USD.Company service scope covers Middle East,Indian Sub-continent,Europe,North and South America,Africa,Latin America,Australia,New Zealand and Southeast Asian regions.
