Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Topband
  • Model Number: TB-1220F
  • Composed Type: 4S1P
  • Type: Li-Ion
  • Components: Lifepo4
  • Size: 180*75*165.5mm
  • Voltage: 12V
  • Weight: approx.3kg
  • Nominal Capacity: 20Ah
  • Application: golf trolley/cart/e-tools,flash torch
  • Green energy: zero emission
  • color: blue/grey/black
  • Certificate: UL,UN38.3,MSDS

Packaging & Delivery

Packaging Details soft PVC,Plastic case,Iron case
Delivery Time Within 20 days after payment

Specifications

High performance
No memory effect
1C-10C discharge current
Environmental friendly
Good battery consistence

Thank you for choosing TOPBAND Battery!

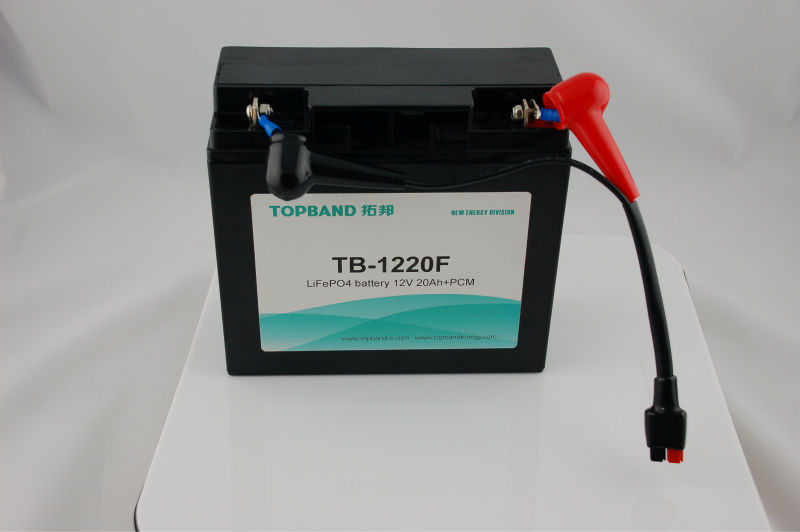

Our lithium iron phosphate battery pack TB-1220F 12V 20AH is the perfect replacement from GEL,LEAD ACID battery.

TB-1220F is designed as a "drop in replacement" meaning all you have to do is take our your old lead acid battery and place our battery in the same way.



TOPBAND lithium batteries are the ideal battery for any application that currently uses as AGM,GEL or lead acid battery.TOPBAND batteries give you the chance to replace your old obsolete battery storage system with the perfect battery for your application.



As you may know, Your existing lead based batteries are inefficient, obsolete and a problem waiting to happen.

Typical Lead Acid Batteries have many problems including: they loose up to 30% of their energy per month from self discharging. They have a severe voltage drop when a load is placed on them, they can off-gas, leak acid and hazardous chemicals, do not last long, they are very heavy and made of a toxic material.

TOPBAND Lithium Ion Batteries are 99.9% efficient, Provide over 100% usable energy of the rated capacity,

and loose less than 3% per month self discharge



Whether you are installing a new Solar System, replacing your Marine Boat Batteries or outfitting a commercial application, TOPBAND Lithium ion Batteries give you the chance to do energy storage right from day one. Most Important for you are the facts that LiFePO4 Batteries can last for the duration of most applications, meaning you buy a TOPBAND battery once and you are done. And considering their longevity and the efficiently they are less costly than the heavy and toxic lead acid batteries.



1>Parameters

ModelTB-1220F
TypeLiFePO4
Nominal voltage12.8V
Typical capacity20Ah
AC Internal Impedance<60mΩ
Max charge voltage14.6±0.05V
Discharge cut-off voltage9.2 ± 0.05V
Max charge current20A
Max continuous discharge current30A
Max pulse discharge current45A(2S)
Charging temperature 0°C~45°C
Discharging temperature 20°C~60°C
Storage temperature -20°C~45°C
Dimension 180*75*166mm
Net Weight2.9kg
Remaining capacity is more than 80% after 2000cycles
We can offer model: 12V 24Ah(the same dimension as 12V 20AH)

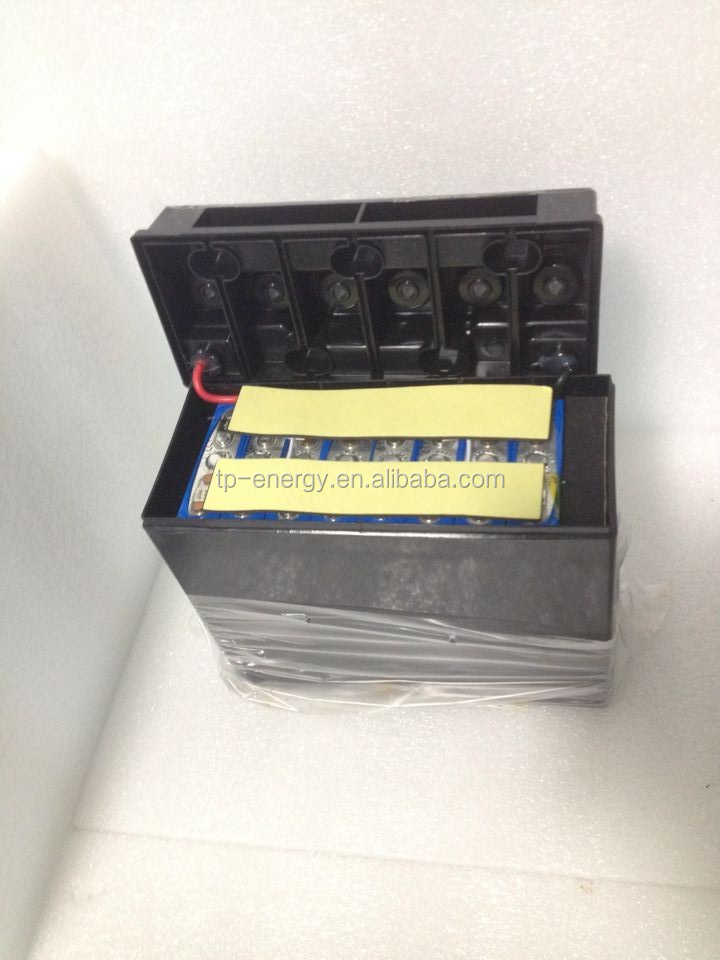

2> TOPBAND HOT SALE 12V 20AH/24AH with built-in BMS(15A/30A)



TOPBAND NEW ENERGY" Storage/Deep Cycle Batteries: (BMS, Cell Balancing, Voltage Cut-OFF protectio

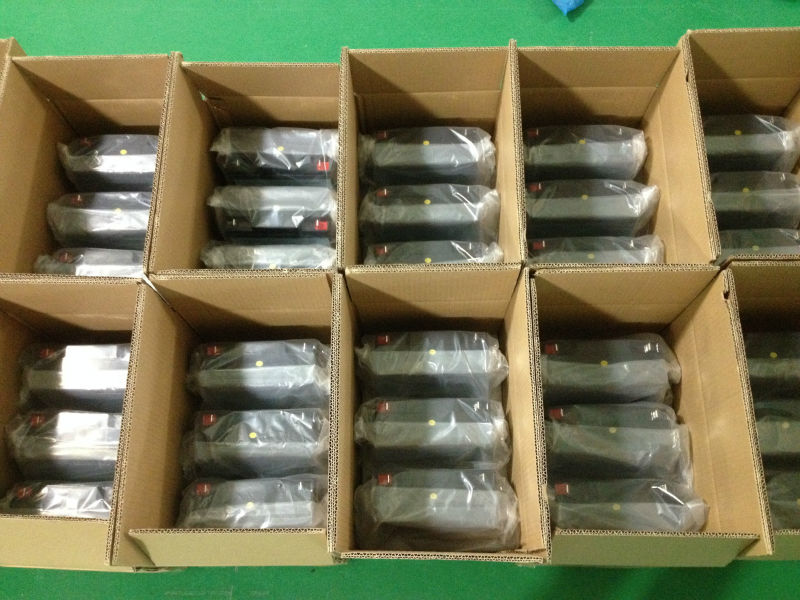

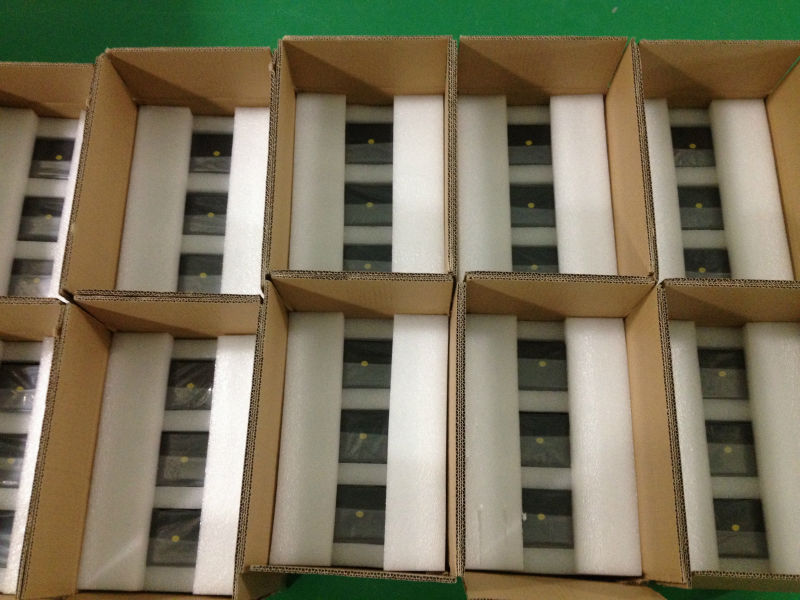

3> Standard Packages

(3packs in one box)



4>Application

           GOLF                         Small solar system

5>LiFePO4 battery vs. Lead Acid Battery

Battery TypeLiFePO4 batteryLead acid battery
NomenclatureLFP batteryLead acid battery
Easiness of ManufacturingMore difficultyEasy

Voltage fluctuation

in working

Rmains stable

with different output

Voltage fluctuation

based on output

Cycle life(Residual capacity over 5%)1500~2000 cycles(eqivalent of around 5 years life)150~200 times(Life is estimated 1 year)
CapacityVery stable and very little affection by output currentSuffer a big affection in by ourput current.Capacity will be much smaller than rated capacity when output current is large.
Depth of discharge 99%50%~60%
Self discharge rate(per month)1~1.5%(capacity remains over 80% even the battery is idled for one year)30%(battery capacity drops near to zero if it is unused for 3 months)
Fast charge capabilityCapable of using 1C~3C charging rate(charge to full capacity can be finished within 20 minutes)Maximum charging rate is 0.2C(It needs at least 6 hours to fully charge the battery)
Max. discharge rate10C~30C1C~5C
Discharge working temperature °c-20~600~40
Memory effectiveNoneAcceptable
Weight(compare to the same capacity)1/3 of weight to lead acid batterycomparatively heavier weight
InstallationAny directionUpright position is necessary
Safety Mild warm,no explosion and firingDanferous of acid leakage
Environmental conform-abilityConforms to RoHs standardViolet RoHs standard,lead and sulphate acid are polluant
Disposition of used batteryNo recycle requiredNeeds special recycle,after treatment utility
Thermal stabilityOutstandingAcceptable
