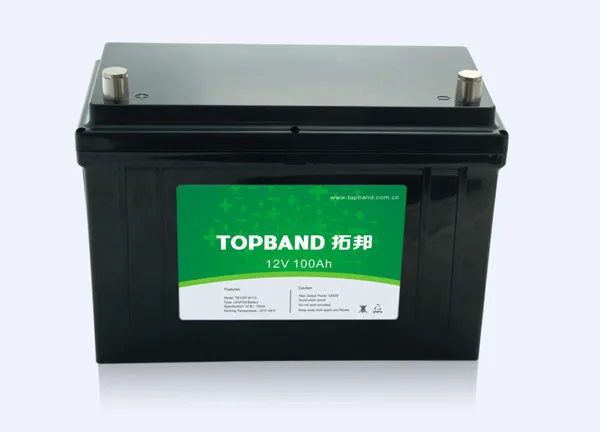

Rechargeable LiFePO4 Battery 12V 100Ah

FOB Reference Price:Get Latest Price
US $400-530 / Sets | 1 Set/Sets Rechargeable LiFePO4 Battery (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Topband
Model Number:
TB12100F-M110A
Type:
Li-Ion
Nominal Voltage:
12V
Size:
Prismatic
Nominal Capacity:
100Ah
Rechargeable LiFePO4 Battery Application:
Marine, RV/Caravan, Backup power, Solar energy
Rechargeable LiFePO4 Battery Voltage:
12.8V
Rechargeable LiFePO4 Battery Capacity:
100A
Rechargeable LiFePO4 Battery Weight:
12.3kg
Rechargeable LiFePO4 Battery Cycle life:
2000 cycles @ 100% DOD
Rechargeable LiFePO4 Battery Dimension:
318*165*215mm
Rechargeable LiFePO4 Battery MOQ:
1set
Rechargeable LiFePO4 Battery Warranty:
2years
Rechargeable LiFePO4 Battery Certificate:
IEC, EC, UL, UN38.3, MSDS
Rechargeable LiFePO4 Battery Protection:
Built in BMS smart monitor system
Supply Ability
Supply Ability:
5000 Set/Sets per Month Rechargeable LiFePO4 Battery
Packaging & Delivery
Packaging Details
Standard export carton or customized
Port
Shenzhen
Lead Time :
20~35 working days based on your confirmed order



Product Description

Rechargeable LiFePO4 Battery SPECIFICATIONS:



 Model No.
 TB12100F-M110A
Voltage:
 12.8V
Capacity:
 100Ah, 1280Wh
Chemistry:
 LiFePO4
Weight:
 12.3kg
Dimensions:
 318mm(L) x 165mm(W) x215mm(H)]
Life Cycles:
 2,000 @ 100% DOD
BMS protection
YES (Internal)
Max Charge Voltage:
14.6V
Discharge Cut-off Voltage:
8V
Max Charge Current:
80A
Max Discharge Current:
100A constant discharge current,350A pulse current for 3s.
Operating Temperature:
-20°C to +60°C



Rechargeable LiFePO4 Battery 12V 100AHRechargeable LiFePO4 Battery 12V 100AhRechargeable LiFePO4 Battery 12V100AH.jpgRechargeable LiFePO4 Battery 12V100Ah



Rechargeable LiFePO4 Battery FEATURES:

• Deep cycle & long life time (over 2000 cycles @ 100% DOD)
• Hight energy density, 1/3 weight of lead acid battery.
• Fast recharge rate with 0.5C-1C
• Safety & steady performance, no explosion, no fire.
• Environmentally friendly



Rechargeable LiFePO4 Battery built-in BMS:

       • Over charge protection.
       • Over discharge protection.

       Over current protection.

       • Over temperature protection.

       • Short circuit protection.

       • Internal cell balancing.
       • No presence of toxic substances.



Rechargeable LiFePO4 Battery CHARGING:
The rechargeable LiFePO4 battery is intended to be used as a direct replacement for lead acid batteries used in energy storage systems. The rechargeable LiFePO4 battery could be charged with AGM/GEL charger, or use advance chargers that turns OFF charging current when the battery is completely charged at 14.6V.  If using lead acid chargers that charges up to 16V, long charging time will damage the Lithium battery.

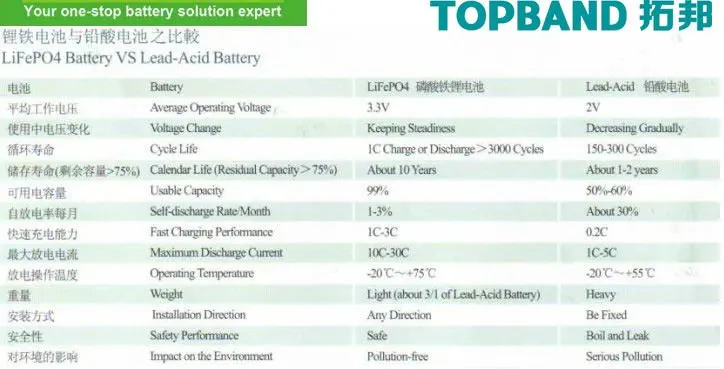

Rechargeable LiFePO4 Battery ADVANTAGES (LITHIUM VS LEAD ACID)

New solar battery 200Ah 12V with SLA case wholesale price



Rechargeable LiFePO4 Battery application:



Topband's SERVICES:

  • Specificed professional service centre
  • Quick response to clients' enquiries whithin 24hrs
  • Exclusive and unique solution can be provided to our clients by our experienced and  professional engineers and researchers
  • Solve the problems be prompt if anything wrong with our products' quality

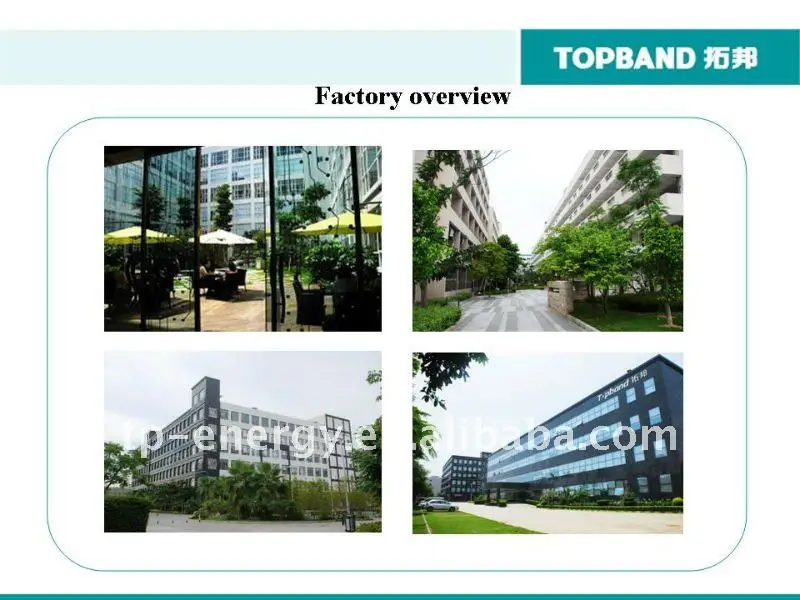

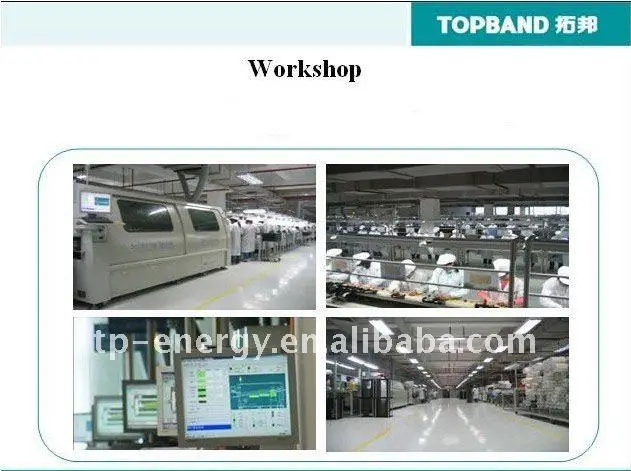

Topband's factory:

 New solar battery 200Ah 12V with SLA case wholesale price

New solar battery 200Ah 12V with SLA case wholesale price

Certification all_1
