lifepo4 battery 42v 3ah TB-42030FH for electric scissors

FOB Reference Price:Get Latest Price
US $90-95 / Packs | 5 Pack/Packs (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TOPBAND
Model Number:
TB-42030FH
Type:
Li-Ion
Nominal Voltage:
42v
Size:
395*75*54mm or as your require
Nominal Capacity:
3ah
Certificates:
CE,UL,SGS,ROHS,UN38.3.TS16949
Supply Ability
Supply Ability:
500 Pack/Packs per Day
Packaging & Delivery
Packaging Details
standard package,soft pvc,plastic case,iron case or as your own request
Port
Shenzhen
Lead Time :
Within 20-25 days after payment

Specifications

High performance
lighter and smaller
No memory effect
electric scissors battery

Topband lithium battery 42v 3ah can be used for electric scissors,medical equipment,or other e-tools.



Detailed data:



Items

Specifications



Model

TB-42030FH



Battery Type

LiFePO4



Nominal Voltage

44.8V



Nominal Capacity

3.0Ah



Internal Impedance

400mΩ



Nominal Charge Voltage

51.1±0.05 V



Discharge cut off Voltage

35.0±0.05V



Max .Charge Current

3A



Max Continue .Discharge Current

6A



Max  .Discharge pulse Current

12A (2s)



Charge method

CC/CV(constant current/constant voltage)



Cycle life

 After 2000cycle,capacity more than 80% nominal capacity




Weight

Approx.1.8kg



Size(L*W*H)

395*75*54mm



Operating Temperature

Charge:       0°C--45°C

Discharge:   -10°C--60°C

Storage Temperature

5°C-35°C(25±5°C suggest 25±5°C)



Relative Humidity

65±20%





Technical Data:

Volatge: 42V

Capacity: 3Ah

Discharge current: 2C

Weight: 1.8kg

Size (Dimension):  395*75*54mm

Normal working temperature: - 20°C ~60°C, can safe work at 70°C

 Characteristic:

1. Green: Non-Toxic, comfort to RoHS.

2. Long cycle life: > 2000 cycles, while Sealed Lead Acid batteries only 750 cycles and NiMh batteries only 500 cycles)

3. Safety

The safest battery in the world till now, which does not burn with 30V charge voltage and it does not explore when you puncture the battery. UL and CE approved.

4. Light weight and smaller dimension

The dimension is smallest and the weight is lightest when compare with other battery. 1/3 weight of SLA, 65% weight of NIMH.

5. Great capacity and more powerful, rechargeable battery

High discharge current, 1C continuous, 3C pulse for normal cells and 20 C for special design

We can install many single cells in series and in parallel and it can fully discharge

6. Good thermal stability: - 20°C to 60°C

7. Back fast charge, good consistence, no memory effect, can equip battery charger.

Can be recharged anytime, no reduction of the capacity

7. Widely application, customize solutions, mass production, OEM/ODM/buyer label provided, factory passed TS 16949, ISO 9001:2008.



Features



Intrinsic safety:no explosion and will not catch fire under collision ,over charged or short circuit .Achieve CE and UL certificate which guarantees the safety of the Li-lon battery .



Environment-friendly: our battery without any hazardous and noxious substances , do no harm to the environment ,be rest assured to use .



Powerful:It can be able discharge  within minus 20 degree to 65 degree .



Long cycle life:up to 2000 cycle life,would be 8 times life of lead acid and 3 times of Ni-MH,2 times of most lithium batteries .



High rate capability:for all high power output application .



No memory effect:Always ready for charge and use ,with no need to charge after a full discharge .



Wide temperature range : It can be available for use when the temperature ranges from minus 20 degree to 70 degree .Extremely cold and extremely hot weather will not effect its performance .

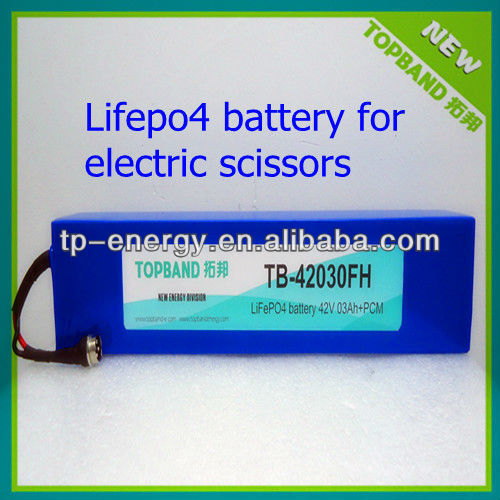

Sample:

lifepo4 battery 42v 3ah TB-42030FH for electric scissors.jpg

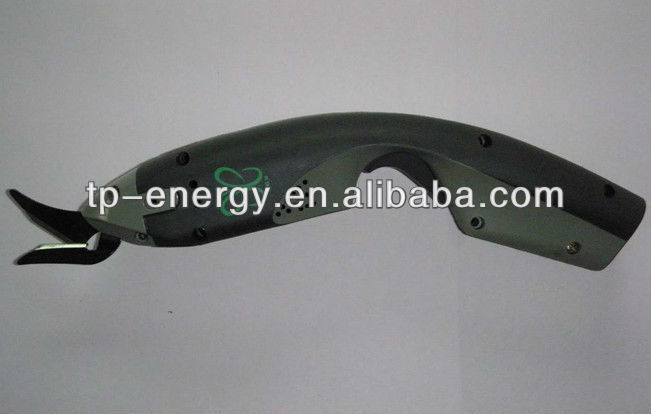

Application:

lifepo4 battery 42v 3ah TB-42030FH for electric scissors .jpg



Connector

lifepo4 battery 42v 3ah TB-42030FH for electric scissors

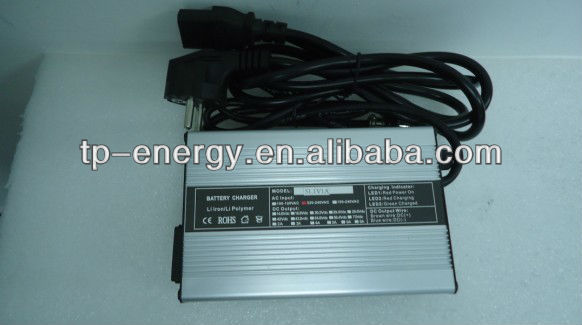

Aviation connector charger

lifepo4 battery 42v 3ah TB-42030FH for electric scissors
