Long lifecycle 12V lithium battery pack for solar

FOB Reference Price:Get Latest Price
US $1-540 / Packs | 1 Pack/Packs (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TOPBAND
Model Number:
TB-12100F
Nominal Capacity:
100Ah
Usage:
solar/wind energy storage,UPS,car
Sealed Type:
Sealed
Maintenance Type:
Free
Weight:
14.8kg
Inner impedence:
≤10mΩ
Work under high temperature:
well performance
Voltage:
3V/6V/12V/24V/36V/48V, 12v
Capacity:
100Ah,200Ah,1000Ah
Sample:
5pcs
Wh:
1200Wh
Certification:
CE,Rohs,UN38.3
Life cycle:
2000times,10-15years
Warranty:
2year gurantee
Price:
factory direct sale price
Size:
330*172*228mm
Supply Ability
Supply Ability:
5000 Pack/Packs per Month
Packaging & Delivery

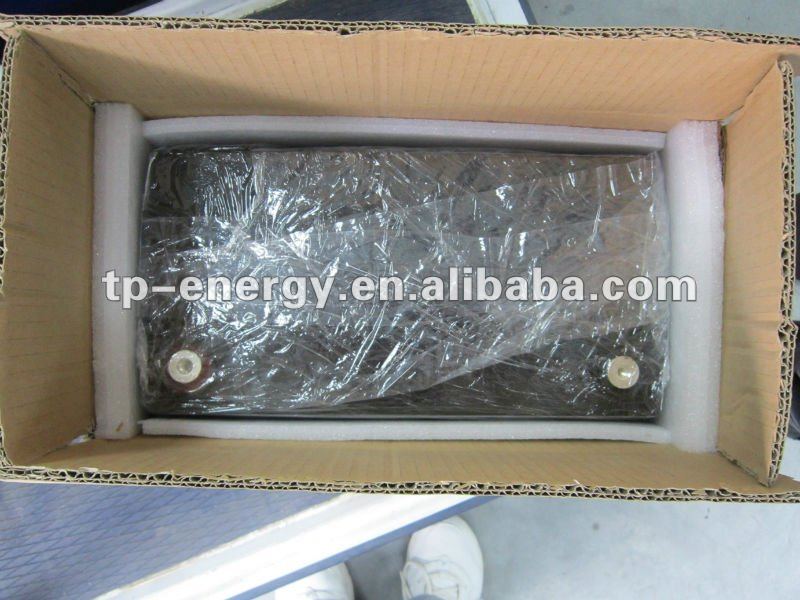

Packaging Details
international standard packing or customize
Port
Shenzhen
Lead Time :
Sample:3~7working days;Order:10~25working days

Specifications

12V lithium battery pack
1,BMS protection wind battery
2,10years battery staff
3,OEM/ODM storage battery
4,2 years warranty

Specification:





Model:TB-12100F
Chemistry:LiFePO4
BMSYes(built inside)
Weight:32.6lbs (14.8kg)
Nominal voltage:12.8V
Typical capacity100Ah 1280Wh
Max Charge voltage14.6±0.05V
Discharger cut-off voltage9.2±0.05V
Max charge current50A
Max continuous discharge current100A
Max pulse discharge current350A (2s)
Operating Temperature:-22°F to +140°F, (-30°C to +60°C)
About 2000 cycles to 80% with 100% DOD under 20 °C~25°C
Size(L*W*H)13"(L) x 6.8"(W) x 9"(H), [330mm(L) x 172mm(W) x228mm(H)]
Application:Forklift, clean car, Bus,solar and energy systems,attractions tour,hybrid vehicle and so on







Long lifecycle 12V 100Ah lithium battery pack for solar



FEATURES:



• Ultra light. 1/5 the weight of lead-acid batteries on average
• Twice to four times the service life of lead-acid batteries
• Drop-in replacement for your OEM battery
• Fast recharge rate
• No explosive gasses during charge, no lead, no acid
• Environmentally friendly






Specs of other storage battery:



ModelBattery MaterialNominal VoltageCapacityLife CyclesCharge VoltageDischarge Cut-off VoltageContinous Discharge Current (MAX)
D0D80%
TB-1220FLiFePO412V20AH≥200014.6V8V50A
TB-1240FLiFePO412V40AH≥200014.6V8V80A
TB-1260FLiFePO412V200AH≥200014.6V8V200A
TB-12100FLiFePO412V60AH≥200014.6V8V300A
TB-12200FLiFePO412V200AH≥200014.6V8V400A
TB-24100FLiFePO424V100AH≥200029.2V16V200A
TB-24200FLiFePO424V200AH≥200029.2V16V400A





 SAFETY:

       • Internal over charge protection.
       • Internal low voltage protection.

       • Internal short circuit protection.

       • Internal cell balancing.

       • Auto Restart function.
       • No presence of toxic substances.



CHARGING:

The TOPBAND energy storage battery is intended to be used as a direct replacement for lead acid batteries used in energy storage systems.  It is best for the battery not to be trickle charged but to use advance chargers that turns OFF charging current when the battery is completley charged at 14.6V.  TOPBAND sells "Smart" chargers for lithium batteries.  Using lead acid chargers that charges up to 16V, along with leaving them ON, will damage the Lithium battery over extended time.


LIFETIME:

       • Expected number of charge cycles over 2,000.

       • Self-discharge rate only 2% per month.

       • Expect 8-10 years of battery life that will reduce your operating cost by half compared to lead acid.



WARRANTY INFORMATION:
2 Year Full Replacement Warranty


NOTE:
This batteries are to be used for energy storage applications and NOT for engine starting applications.Unlimited packs in parallel at 12V.


ADVANTAGES (LITHIUM VS LEAD ACID)















Why choose TOPBAND 12V Lithium Battery?



Shenzhen Topband Co.,Ltd(stock code:002139),Founded in 1996,is a professional intellectual controller and lithium battery service manufacturer in China.Topband keeps steady growing with 5branches and one subsidiary in the world which are Shenzhen,Hangzhou,Chongqin.In2009,Topband started her first overseas branch in Turkey.Nowadays,Topband has annual revenue about 150million USD.Company service scope covers Middle East,Indian Sub-continent,Europe,North and South America,Africa,Latin America,Australia,New Zealand and Southeast Asian regions.



Quality System:Passed the HSPM QC080000, ISO14001: 2004, ISO9001: 2000, OHSA28001: 2001,TS16949.



Certifications:UL,FCC,ETL,CE,RoHS.



Cooperation Association: Tsinghua University Institute” & “Harbin Industrial University



Working room:First-class Workshops and Equipments



Experience:16 years experience staff



R&D: A provincial 350 R & D center of technology, a national laboratory and a group of professional people with great experience, skills and qualities



Above 700,000 square meters factory with more than 3500 staff

The largest domestic production based on ERP SAP&PDM, which can completely meet the requirements of large-scale production and ensure good quality of each product
