Topband 48V6Ah Mini water bottle electric bike Battery Pack with PCM Protection supplier

FOB Reference Price:Get Latest Price
US $1-300 / Packs | 2 Pack/Packs (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Topband
Model Number:
TB-4806F
Composed Type:
16series 2parallel
Type:
Li-Ion
Components:
lithium iron phosphate
Size:
90*490mm
Voltage:
48V
Weight:
5KG
Nominal Capacity:
6AH
Application:
Solar power system,UPS,LED lighting,Lawn light,Medical equipements
COLOR:
blue
green energy:
zero emission
SupplyAbility
SupplyAbility:
10000 Pack/Packs per Week
Packaging & Delivery
Packaging Details
soft PVC,Plastic case,Iron case
Port
FOB shenzhen
Lead Time :
Within 20 days once ordered

Specifications

48v lifepo4 battery pack
No memory effect
1C-10C discharge current
Environmental friendly
Good battery consistence

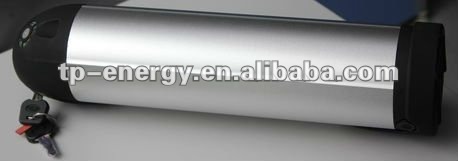

Topband 48V6Ah Mini water bottle electric bike Battery Pack with PCM Protection



Model:TB-4806F
TypeLiFePO4 battery with PCM
Nominal voltage: 51.2V
Typical capacity6Ah
Internal Impedance(1kHz AC)<300mΩ
Max Charge voltage58.4±0.05V
Discharger cut-off voltage40±0.05V
Max charge current10A
Max continuous discharge current15A
Max pulse discharge current30A (2s)
Charging temperature0°C~45°C
Discharging temperature-20°C~60°C
Storage temperature-20°C~45°C
About 2000 cycles to 80% with 100% DOD under 20 °C~25°C
Size(L*W*H)Ø90*490mm
Weight:approx.5kg

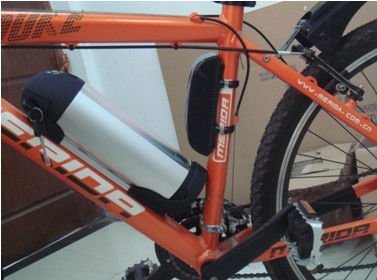

Application:E-Bike, E-motor and E-Scooter and so on
We can offer model: 48V 3Ah,24V12Ah



48v lifepo4 battery pack

48v lifepo4 battery pack



Compared with SLA battery,lifepo4 battery has many advantages:

1Long cycle life:up to 2000 times

1. Green: Non-Toxic, comfort to RoHS.

2. Long cycle life: > 2000 cycles, while Sealed Lead Acid batteries only 750 cycles and NiMh batteries only 500 cycles)

3. Safety

The safest battery in the world till now, which does not burn with 30V charge voltage and it does not explore when you puncture the battery. UL approved.

4. Light weight and smaller dimension

The dimension is smallest and the weight is lightest when compare with other battery. 1/3 weight of SLA, 65% weight of NIMH.

5. Great capacity and more powerful, rechargeable battery

High discharge current, 1C continuous, 3C pulse for normal cells and 20 C for special design

We can install many single cells in series and in parallel and it can fully discharge

6. Good thermal stability: - 40°C to 70°C

7. Back fast charge, good consistence, no memory effect, can equip battery charger.

Can be recharged anytime, no reduction of the capacity

7. Widely application, customize solutions, mass production, OEM/ODM/buyer label provided, factory passed TS 16949, ISO 9001:2008.
