lithium iron phosphate storage battery cell /batteries 3.2V 20AH

FOB Reference Price:Get Latest Price
50 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Topband
Model Number:
TB-3220F
Usage:
energy storage,medical equipment,UPS,EV,HEV,communication base etc.
Voltage:
3.2V
Sealed Type:
Sealed
Maintenance Type:
General
Size:
180*70*28mm
Weight:
0.645kg
Nominal Capacity:
20Ah
Green Energy:
Zero Emission
Color:
Blue/grey/black PVC
Certificates:
CE,UL,ROHS,UN38.3
SupplyAbility
SupplyAbility:
30000 Piece/Pieces per Quarter
Packaging & Delivery
Packaging Details
soft PVC or as your require
Port
FOB shenzhen
Lead Time :
Within 20 days once order confirmed

Specifications

High performance
1C-10C discharge current
Long cycle life,up to 2000 times
Smaller and lighter
No memory effect

{lithium iron battery 3.2v}.jpg

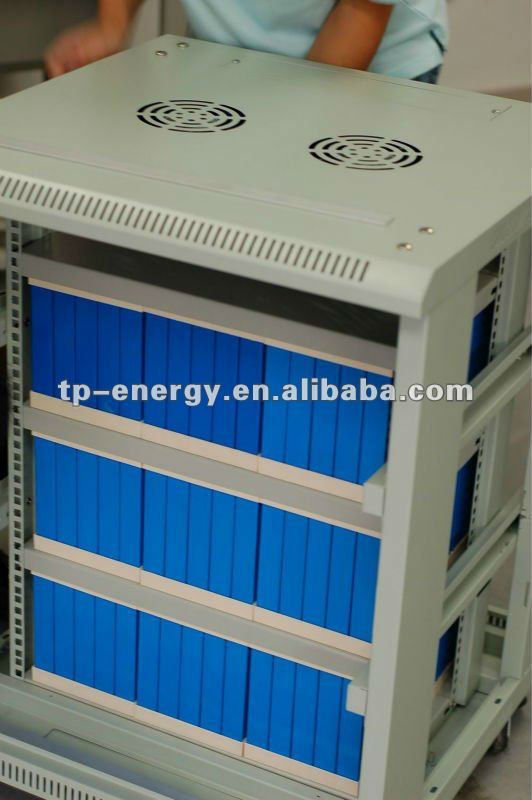

Rechargeable lifepo4  battery 26650 can be used for EV,HEV,Sightseeing Bus,e-bicycle,e-motorcycle,Lawn Cart,Forklift etc.



Compared with SLA battery,the advantages of LiFePo4 battery are as below:

1. Green: Non-Toxic, comfort to RoHS.

2. Long cycle life: > 2000 cycles, while Sealed Lead Acid batteries only 750 cycles and NiMh batteries only 500 cycles)

3. Safety

The safest battery in the world till now, which does not burn with 30V charge voltage and it does not explore when you puncture the battery. UL approved.

4. Light weight and smaller dimension

The dimension is smallest and the weight is lightest when compare with other battery. 1/3 weight of SLA, 65% weight of NIMH.

5. Great capacity and more powerful, rechargeable battery

High discharge current, 1C continuous, 3C pulse for normal cells and 20 C for special design

We can install many single cells in series and in parallel and it can fully discharge

6. Good thermal stability: - 20°C to 60°C

7. Back fast charge, good consistence, no memory effect, can equip battery charger.

Can be recharged anytime, no reduction of the capacity



Parameters for your CHECK.



Item

Specification

Remark

5.0 Typical Capacity

21Ah

0.5C discharge capacity

5.1 Minimum Capacity

20Ah



5.2 Internal Impedance

4.0

By AC 1 kHZ

5.3 Nominal Voltage

3.20V



5.4 Cell Weight

640±20g

contain package



5.5 End-of-charge Voltage

3.65V

At CC mode

5.6 End-of-charge Current

0.01C

At CV mode

5.7 End-of-discharge Voltage

2.00V



5.8 Charge Method

0.5 C CC/CV

180min

5.9 Max Continuous Discharge current

60A

Continuous Discharge Time:10 minutes

5.10Max pulse Discharge Current

100A

Continuous Discharge Time: 10 seconds

5.11 Cycle Life

2500cycles

1C Continual Discharge :

100% DOD)

5.12 Operating

Temperature

Range

Charging Temperature



0~45°C

Ambient temperature

Cell skin temperature must be <65°C



Discharging

Temperature

-25~60°C

Ambient temperature

Cell skin temperature not exceed 80°C



Storage Temperature

-30~45°C



Recommended temperature range for long term storage is –10 ~ +20°

5.13 Shelf Life

2year

Typical value from ship state

 lithium iron battery 3.2v

lithium iron battery 3.2v



Should you have any requests,pls contact with me.It's our pleasure to be on service of you!



 Advantages



1>Fast charging



 Can loading 90% capacity in 20min



 2>High rate discharge



10C discharge ratio at normal temperature95%*0.5C discharge



 3>Excellent performance at H-L temperature



Discharge capacity ratio at -20°C/0.2°C75%(discharge capacity at 25 ≥ /1C)



Discharge capacity ratio at -40°C/0.2°C60%(discharge capacity at 25 ≥ /1C)



4>Long cycle life



Capacity remaining after 2000 cycles ≥ 80% of initial capacity at 100% DOD



5>Low Impedance



Impedance of 20AH cell with welding process can be controlled within 2.5mΩ



6>Single battery cell ac impedance 2.5mΩ



7>High energy density



Normal energy density 115Wh/kg,High energy density 125Wh/kg



8>Low self-discharge



Storage :28 days at 20°C,Capacity remaining 95%



Storage :55 days at 55°C,Capacity remaining 95%



9>High safety



10>IEC62133 and UL1642 safety test approved
