Energy storage lifepo4/lithium battery 12V 100AH with built-in BMS

FOB Reference Price:Get Latest Price
US $560-600 / Packs | 2 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Topband
Model Number:
TB-12100F
Composed Type:
4S5P
Type:
Li-Ion
Components:
LiFePo4
Size:
327*172*216or as your require
Voltage:
12V
Weight:
15.5kg
Nominal Capacity:
100AH
Application:
Solar system/solar street light/fishing boat
Green energy:
Zero Emission
Color:
blue PVC/SLA case
SupplyAbility
SupplyAbility:
1500 Pack/Packs per Quarter
Packaging & Delivery
Packaging Details
soft pvc,plastic case,iron case or as your own request
Port
FOB shenzhen
Lead Time :
Within 20 days once order confirmed

Specifications

High quality with competitive price
Environmental Friendly
Smaller and Lighter
1C- 10C discharge current
Long cycle life

{12v 100ah}.jpg



Application: 12V 100Ah Automobile,  Truck, and SUV battery, the best replacement of Seald Lead Acid (SLA) battery and NIMH battery.

With 1/3 weight, smaller dimension, but 8 times cyclelife than SLA batteries.

Standard and custom battery solution are provided!









Product Description



Model:TB-12100F
TypeLiFePO4 battery with PCM
Nominal voltage: 12.8V
Typical capacity100Ah
Internal Impedance(1kHz AC)<60mΩ
Max Charge voltage14.6±0.05V
Discharger cut-off voltage9.2±0.05V
Max charge current80A
Max continuous discharge current100A
Max pulse discharge current350A (2s)
Charging temperature0°C~45°C
Discharging temperature-10°C~60°C
Storage temperature-20°C~45°C
About 2000 cycles to 80% with 100% DOD under 20 °C~25°C
Size(L*W*H)327*172*216mm
Weight:approx.15.5kg
Application:Forklift, clean car, Bus,solar and energy systems,attractions tour,hybrid vehicle and so on
We can offer model: 12V 125Ah



Packaging & Shipping

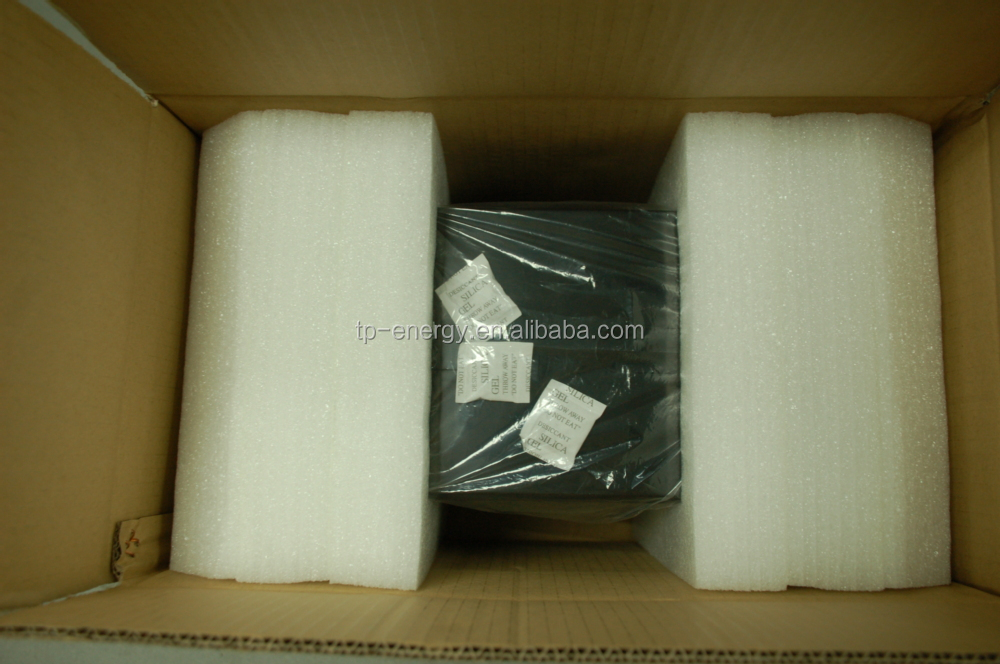

One LiFePO4 battery 12V 100AH/125AH in one carton box.

Standard box dimension: 450*260*310mm



 energy storage 12V 100AH

energy storage 12V 100AH

 energy storage 12V 100AH.JPG

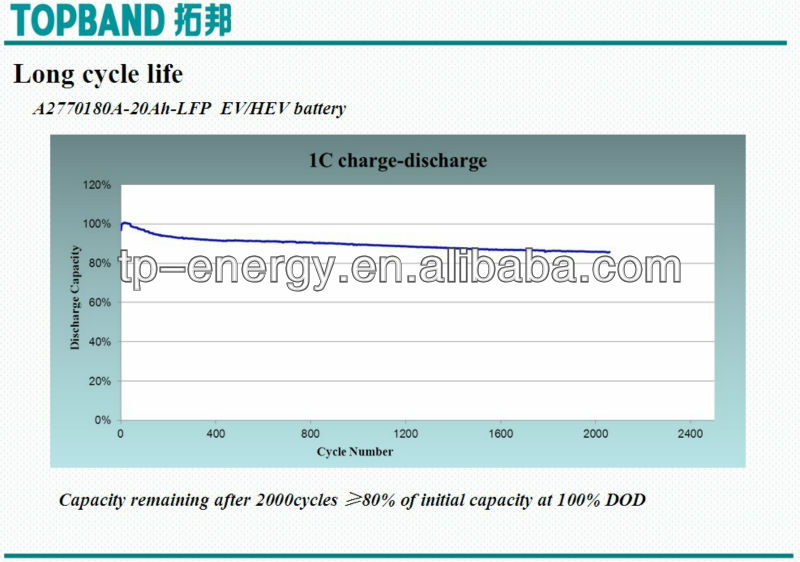

Long cycle life

energy storage 12V 100AH





More 12V SERIES BATTERIES HERE,

12V SERIESVoltageCapacity

Cont. Dsg Current

Compatible chargerDimensionWeight(lb)

Working

Temp( °c )

 TB-1206F  12.8V 6AH 9A  14.6V 2A/4A5.9" x2.6"x3.7"
150 x65x95mm
2.0lbs (0.9kg)

Dsg temp -20~60

Charge temp 0~45

 TB-1209F  12.8V 9AH 9A  14.6V 2A/4A5.9"x 2.6"x 3.7"
150x 65x 95mm

2.8lbs

(1.3kg)



Dsg temp -20~60

Charge temp 0~45

 TB-1212F  12.8V 12AH 15A  14.6V 4A5.9"x 3.9"x 3.7"
150x 98 x 95mm
 3.7lbs
(1.7kg)


Dsg temp -20~60

Charge temp 0~45

 TB-1220F  12.8V 20AH 30A  14.6V 4A7.1"x 3.0"x 6.5"
180x 75x166mm

 6.6lbs

(3kg)



Dsg temp -20~60

Charge temp 0~45

 TB-1224F  12.8V 24AH 30A  14.6V 4A7.1"x 3.0"x 6.5"
180x 75x166mm

6.6lbs

(3kg)



Dsg temp -20~60

Charge temp 0~45

 TB-1240F  12.8V 40AH 50A  14.6V 10A7.7"x 6.5" x 7.0"
195x165x176mm

13.2lbs

(6kg)



Dsg temp -20~60

Charge temp 0~45

 TB-1250F  12.8V 50AH 50A  14.6V 10A7.7"x 6.5" x 7.0"
195x165x176mm
16.2lbs
(7.3kg)


Dsg temp -20~60

Charge temp 0~45

 TB-1260F  12.8V 60AH 100A  14.6V 10A13"x 6.8"x 9"
330x172x228mm

26.4lbs

(12kg)



Dsg temp -20~60

Charge temp 0~45

 TB-1280F  12.8V 80AH 100A  14.6V 20A13"x 6.8"x 9"
330x172x228mm

30.8lbs

(14kg)



Dsg temp -20~60

Charge temp 0~45

 TB-12100F  12.8V 100AH 100A/150A  14.6V 20A13"x 6.8"x 9"
330x172x228mm
32.6lbs
(14.8kg)


Dsg temp -20~60

Charge temp 0~45

 TB-12125F  12.8V 125AH 100A/150A  14.6V 20A13"x 6.8"x 9"
330x172x228mm

33lbs

(15kg)



Dsg temp -20~60

Charge temp 0~45

 TB-12200F  12.8V 200AH 100A/150A  14.6V 40A

19"*6.9"*9.6"

485*170*245mm

57.2lbs

(26kg)



Dsg temp -20~60

Charge temp 0~45







Our Services



Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.

We also welcome OEM and ODM orders. With excellent quality, timely deliverycompetitive price and good reputation,Topband is highly praised by customers at home and abroad.





Company Information

 energy storage 12V 100AH

Foundation: Our company was registered in the so-called "China Silicon Valley", Shenzhen Hi-tech Industrial Park in 1996.


Operation: After years of rapid development, Topband has taken intellectual control as the core technology and has become a leading supplier of intellectual control solutions, continuously expanding applications.


Capacity: Topband has a staff of more than 3000, and covers an area of 70,000 square meters. We have two large production bases in Shenzhen and Hangzhou plus our R&D base in Chongqing.


Certification: ISO9001-2009, TS16949, ISO14001, OHSAS18001


Core Competence: our R&D team of over 300 professionals, in cooperation with TsingHua Research Institute and Herbin Industrial University have laid a firm foundation for our leading technology.

 energy storage 12V 100AH

energy storage 12V 100AH

energy storage 12V 100AH
