RV Bluetooth Battery Monitor Recreational Vehicles Battery 12V 100Ah LiFePO4 Battery Pack

FOB Reference Price:Get Latest Price
$350.00 - $500.00 / Pieces | 10 Piece/Pieces (Min. Order)
Nominal Capacity:
100Ah
Nominal Voltage:
12.8V
Battery Size:
TB12100F-BL-M110C
Lead Time:
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 25 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TOPBAND
Model Number:
TB12100F-BL-M110C
Type:
lifepo4 battery
Certification:
UL for inside cells
Item:
12V 100Ah LiFePO4 Battery Pack
Size:
318*165*215mm
Continouse discharge current:
100Amps
Max discharge current:
350Amps(2s)
Charge Current:
max 80A
Charging profile:
CC/CV
Cycle life (#charges) (@80%DoD):
3000cycles
Warranty:
2years
Weight:
12.3kg
Application:
Recreational vehicles/RV battery
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month Enlarge the production capacity enlarge is acceptable
Packaging & Delivery
Packaging Details
Standard exporting package by sea or by air for 12V 100Ah LiFePO4 Battery Pack
Port
shenzhen
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 25 To be negotiated
Video Description

RV Bluetooth Battery Monitor Recreational Vehicles Battery 12V 100Ah LiFePO4 Battery Pack



Topband lithium batteries have been installed on recreational vehicles “RV” than ten years. The model F series battery, with its outstanding performance, provides a safe and convenient RV travel experience.



Features of 12V 100Ah LifePo4 battery pack:

-High quality & perfomance battery cell

-Robust & Strong structure to protect battery

-With Built-in integrated BMS to keep safe

- Easily monitor battery data via bluetooth connection

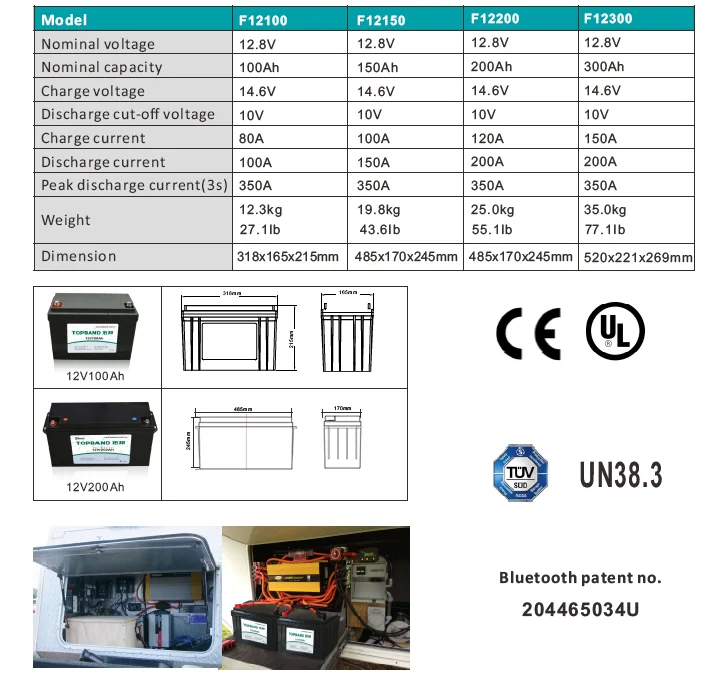

The Datasheet of 12V 100Ah LifePo4 battery pack for your reference:



   NO

   Items

   Description

   Normal Specification

1

   Nominal Voltage

    12.8V

2

   Normal Capacity

    100Ah

3

   Internal Resistance

    ≤20mΩ

4

   Series application

    Support up to four groups in series

5

   Communication function

    Bluetooth

   Standard Charge

6

Charge operation temperature range

0~45℃

7

Normal charge voltage

14.6±0.1V

8

Recommended float charge voltage(for Standby use)

13.8±0.1V

9

Allowed MAX constant charge current

80A@Battery initial Temp 25±5℃

10

Recommended charge current

≤60A

Standard Discharge

11

Discharge operation temperature range

-20~60℃

12

Output Voltage Range

8.0~14.6V

13

Allowed MAX constant discharge current

80A @Battery initial Temp 25±5℃

14

Discharge peak current

100A/30min,400A/3s

15

Discharge end voltage

8.0V





    NO

      Items

   Description

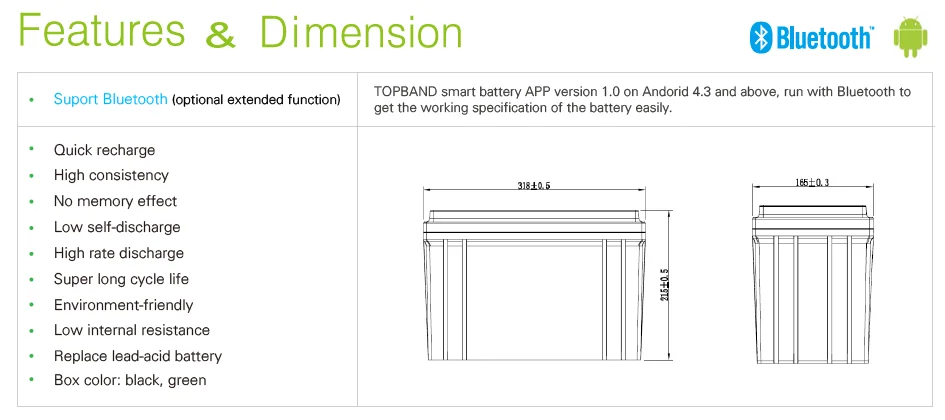

Mechanical Characteristics

16

Dimension

    Length  318±2mm

    Width   165±2mm

    Height   215±2mm

17

    Weight

    Approx.  12.2Kg

   Storage

18

Storage Temperature &  Humidity Range

Short: within one month

-20~35℃, 45~75%RH

Long term: above one month

-10~30℃, 45~75%RH

19

Self-discharge rate

Residual capacity

≤3% per month; ≤15% per year

Reversible capacity

≤1.5%per month; ≤8% per year























More information if needed, please freely contact us by click here.

Also, if this items not suitable for you, please find other models as below:

Residential-ESS-48V-200Ah                 Solar-Battery-12V-100Ah       3.2V-25Ah-Battery-cells



Except 12V 100Ah LifePo4 battery pack, there's other models for options:

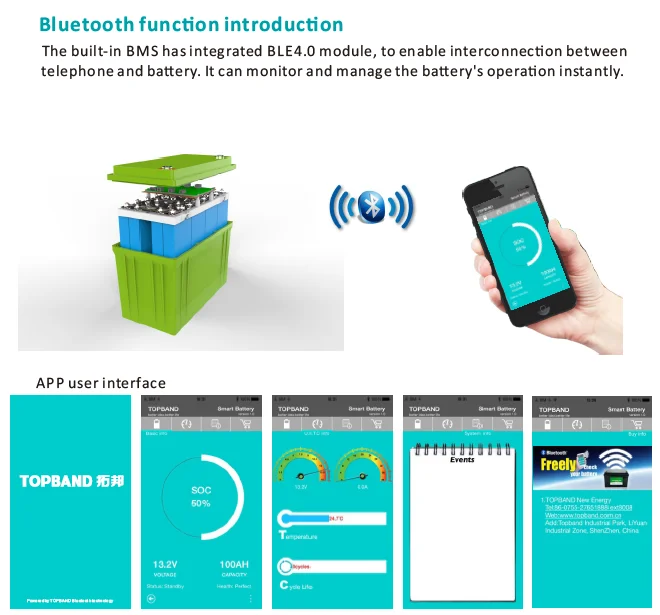

Monitor Battery Status by App on phone(Androids or OS Operating System)

Customized Logo/name of APP is available, but need extra cost for development fees. Or you can adopt Topband Standard APP for reference.



The F series can directly replace the lead acid baery on the RV. It can provide 3 mes more energy than lead acid baery and bring more convenience and happiness for your journey.





  • 1.Experience--More than 12 years Specialized in LiFePO4 battery, Gold Supplier on Alibaba.
  • 2. Leading level on the BMS development and production capablity.
  • 3.Certification--CE,UL,MSDS, UN38.3 Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
  • 4. Quality Control-- IATF 16949:2016, ISO:9001:2015, ISO:14001:2015 strict quality process and system check to promise stable quality and high reliability for you.
  • 5. The LiFePO4 battery cells, BMS, battery on one site-TOPBAND factory
  • 6. We always provide the one stop solution for clients.





     Welcome to visit TOPBAND Batteries at any time!
