rechargeable 48v200ah home energy storage battery lithium battery 51.2v200ah cloud application

FOB Reference Price:Get Latest Price
US $5,500-6,500 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Topband
Model Number:
TB-51200F-T107A
Nominal Capacity:
200Ah
Usage:
energy storage system
Maintenance Type:
General
Weight:
≤130kg
MOQ:
1pcs
Type of protection:
IP20
Voltage:
51.2v
Size:
300*700*1650mm
Supply Ability
Supply Ability:
20 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Strength carton package
Port
FOB Shenzhen

1 General information

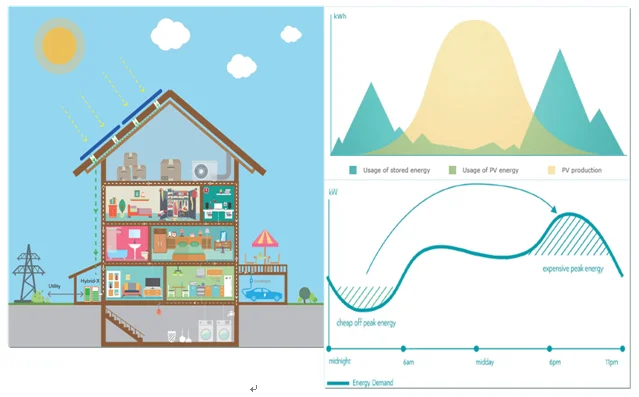

As electricity prices is rising, more and more people want to become as energy self-sufficient. In this case, the Hybrid-X is built for customers who already have a PV system and for people who start to consider building theirown generating electricity on roof.

The internal consumption of solar power is very limited without using a storage systems. However, by using the Hybrid-X which can cover up to 60% and more of their entire electricity consumption in the house. And reduce the electricity bills at the same time.

 No

Items

Description

Battery specification

1

Nominal voltage

51.2V

2

Nominal capacity

200Ah

3

Nominal energy

10.24KWh

4

Chemistry

LiFePO4

5

Operation temperature

0~45℃

6

Operation voltage range

46.5~58.4V

7

Allowed Max charging power

2KW

8

Allowed MAX constant charge current

50A

9

Allowed Max discharging power

5KW

10

Allowed MAX constant discharge current

150A(>0.5H)

11

Cycle life(DOD100%)

≥2000 times

12

Battery module size

L: 400±2mm

W: 312±2mm

H: 200±1mm

13

Battery module weight

30±2Kg

14

Storage Temperature &  Humidity Range

Short: within one month

-20~35, 45~75%RH

Long term: above one month

-10~30, 45~75%RH

15

Self-discharge rate

Residual capacity

3% per month; 15% per year

Reversible capacity

1.5%per month; 8% per year

PV Input (DC)

16

Nominal input power

4KW

17

Max input power

5KW

18

Input voltage range

125~500Vd.c

19

Min working voltage

100Vd.c./150Vd.c.

20

MPPT voltage range

150~450Vd.c.

21

Full load MPPT voltage range

250~450Vd.c.

22

MPPT track

2

23

Input terminal

1

24

Max charging current

50A

25

MPP Precision

>99%

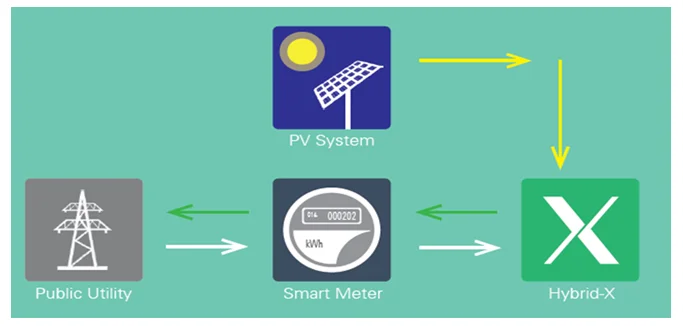

2 How it works

3 Our service

 • We will reply your enquiry wihthin 24 hours.

 • Design, research, customized energy solutions available

 • Provide trial production and mass production

 • One stop before sales servie & after sales service & technical support



4 Company information

Shenzhen Topband Co., Ltd. was registered in so called “China Silicon Valley”, Shenzhen Hi-tech Industrial Park in 1996, and got listed in Shenzhen Stock Exchange ( the stock code as 002139) in 2007.

If any interest, do not be hesitate to contact with us! Hope we could be your good partner!
