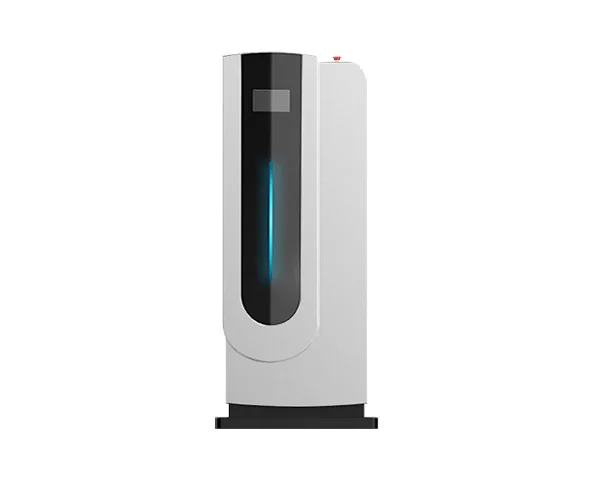

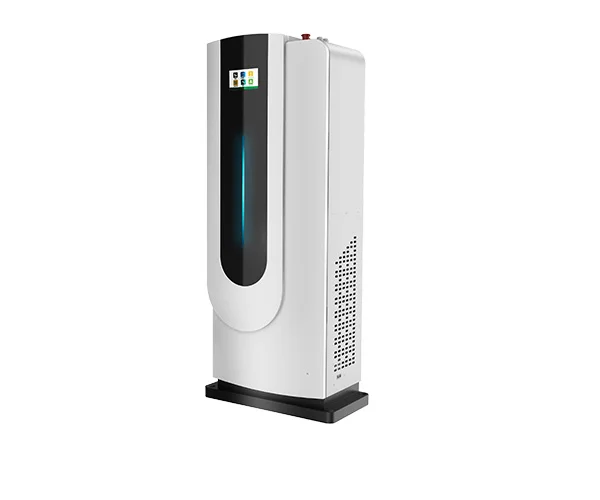

TOPBAND Solar Energy Storage System with Lithium LFP LiFePO4 batteries

FOB Reference Price:Get Latest Price
  • 1 - 15 Units
    US $8900.00
  • >=16 Units
    US $16.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TOPBAND
Model Number:
TB51200F-T107A
Usage:
Solar Energy Storage System
Voltage:
48V 51.2V
Sealed Type:
Sealed
Maintenance Type:
Free
Size:
600*387*1700
Weight:
125KG
Nominal Capacity:
200AH






Residential Lithium Energy Storage System Specfication

                                   Mode: TB51200F-T107A



1.    Specification

Battery specfication

Norminal voltage

51.2V

Norminal capacity

200Ah

Norminal energy

10.24KWh

Chemistry

LiFePO4

Operation temperature

0~45℃

Operation voltage range

46.5~58.4V

Allowed Max charing power

2KW

Allowed MAX constant charge current

50A

Allowed Max discharing power

5KW

Allowed MAX constant discharge current

150A(>0.5H)

Cycle life(DOD100%)

≥2000

Battery module size

L:360mm

W:260mm

H:100mm

Battery module weight

30±2Kg

Storage Temperature &  Humidity Range

Short: within onemonth

-20~35℃,45~75%RH

Long term: above one month

-10~30℃,45~75%RH

Self-discharge rate

Residual capacity

3% per month; 15% per year

Reversible capacity

1.5%per month; 8% per year



PV Input (DC)

Norminal input power

4KW

Max input power

5KW

Input voltage range

125~500V d.c

Min working voltage

100Vd.c./150Vd.c.

MPPT voltage range

150~450Vd.c.

Full load MPPT voltage range

250~450Vd.c.

MPPT track

2

Input terminal

1

Max charging current

50A

MPP Precision

>99%



AC Input (AC)



Norminal Grid Voltage

170V~280Va.c.

Norminal Frequency

50/60HZ

Max input current

23A

Max input power

5KW



AC Output (AC)



Norminal output voltage

208/220/230/240Va.c.

Norminal Frequency

50/60Hz

Max output current

23A

Output waveform

Pure Sine

Max output power

5KVA/4KW

Type of infeed

Single phase



Norminal output voltage

208/220/230/240Va.c.

Voltage range

184~264.5Va.c.

Norminal Frequency

50/60Hz

Max power

5KW

Norminal current

23A

Swift time

10ms

Efficiency

Hybrid inverter efficiency

≥96%

Lithium battery efficiency

≥98%

System efficiency

≥90%
