Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Topband
  • Model Number: TB-BL1220F-S115D
  • Type: Li-Ion
  • Nominal Voltage: 12V
  • Size: Prismatic
  • Nominal Capacity: 20Ah
  • Battery type: Bluetooth Function
  • Color: Black, Blue, Green
  • Application: RV/Solar Energy/EV/UPS/Golf Cart
  • Cycle life: 2000 cycles at 100%DOD
  • Warranty: 2 Years
  • Capacity: 20Ah
  • Weight: 3kg
  • Certificate: CE, UN38.3, MSDS, UL1642

Packaging & Delivery

Packaging Details: standard export carton
Delivery Detail: 2~4weeks for samples; 4~6weeks for mass production

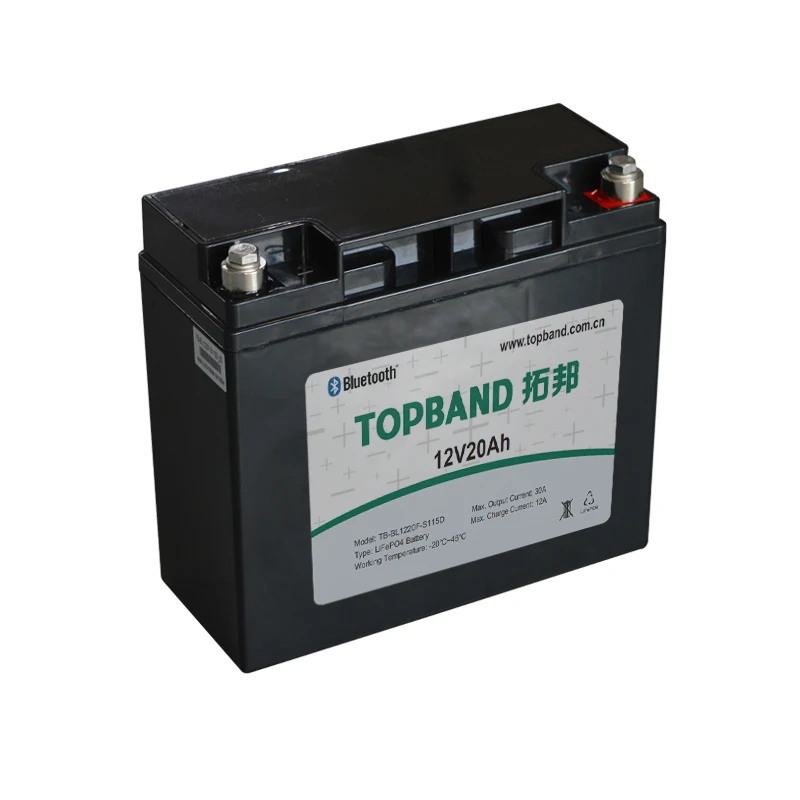

 Smart Lithium Battery 12V 20Ah Blutooth Function for UPS/Golf Trolley/Solar System



No.

Items

Specifications

1

Model

TB-BL1220F-S115D

2

Battery Type

LiFePO4

3

Nominal Voltage

12.8V

4

Nominal Capacity

20Ah

5

Internal Impedance

50

6

Nominal Charge Voltage

14.6±0.05 V

7

Discharge cut off Voltage

9.2±0.05V

8

Max .Charge Current

10A

9

Max Continue .Discharge Current

30A

10

Max  .Discharge pulse Current

55A (3s)

11

Charge method

CC/CV(constant current/constant voltage)

12

Cycle life

 80%  After 2000cycle,capacity more than 80% nominal capacity

13

Weight

approx.3kg

14

Size(L*W*H)

181*76*165mm

15

Operating Temperature

Charge:       0°C--45°C

Discharge:   -10°C--60°C

16

Storage Temperature

5°C-35°C

17

Relative Humidity

65±20%





Compared with SLA battery,lifepo4 battery has many advantages:



1Long cycle life:up to 2000 times

1. Green: Non-Toxic, comfort to RoHS.

2. Long cycle life: > 2000 cycles, while Sealed Lead Acid batteries only 750 cycles and NiMh batteries only 500 cycles)

3. Safety

The safest battery in the world till now, which does not burn with 30V charge voltage and it does not explore when you puncture the battery. UL approved.

4. Light weight and smaller dimension

The dimension is smallest and the weight is lightest when compare with other battery. 1/3 weight of SLA, 65% weight of NIMH.

5. Great capacity and more powerful, rechargeable battery

High discharge current, 1C continuous, 3C pulse for normal cells and 20 C for special design

We can install many single cells in series and in parallel and it can fully discharge

6. Good thermal stability: - 40°C to 70°C

7. Back fast charge, good consistence, no memory effect, can equip battery charger.

Can be recharged anytime, no reduction of the capacity

7. Widely application, customize solutions, mass production, OEM/ODM/buyer label provided, factory passed TS 16949, ISO 9001:2008.







Applications,UPS Medical Lighting LED torch

                      Road side night warning indicator

                        Motorcycle♥e-bike  e-scooter

                           ♥Small doctor instruments♥

                                Energy storage♥
