LiFePO4 24V 100Ah lithium battery for UPS/Standby Power

FOB Reference Price:Get Latest Price
US $600-1,000 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TOPBAND
Model Number:
TB24100F-S110A
Composed Type:
8S4P
Type:
lifepo4 battery
Components:
lithium iron phosphate
Size:
450*170*245mm
Voltage:
25.6V
Weight:
25kg
Nominal Capacity:
100Ah
Application:
UPS/Standby Power
Nominal Voltage:
24V
Capacity:
100Ah
Charge temperature:
0 ~ 45 °C
Storage temperature:
-20 ~ 45 °C
Discharge temperature:
-20 ~ 60 °C
Charging profile:
CC/CV
Warranty:
2 Years
Standards:
IP54
Integrated cell balancing:
yes
Temperature protection:
yes
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard shipment package
Port
shenzhen
Lead Time :
25days after the payment
Product Details

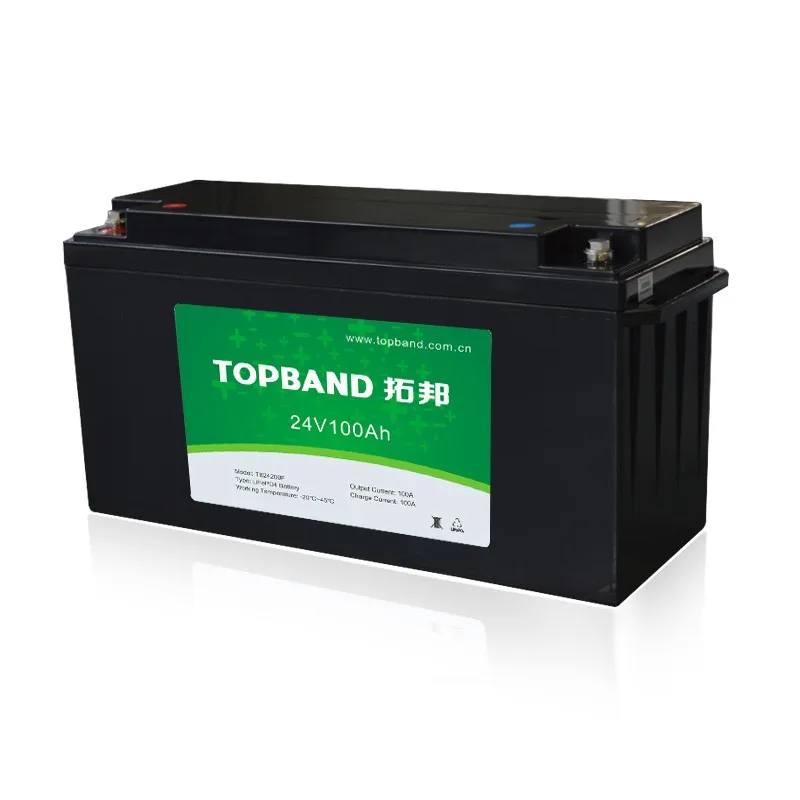

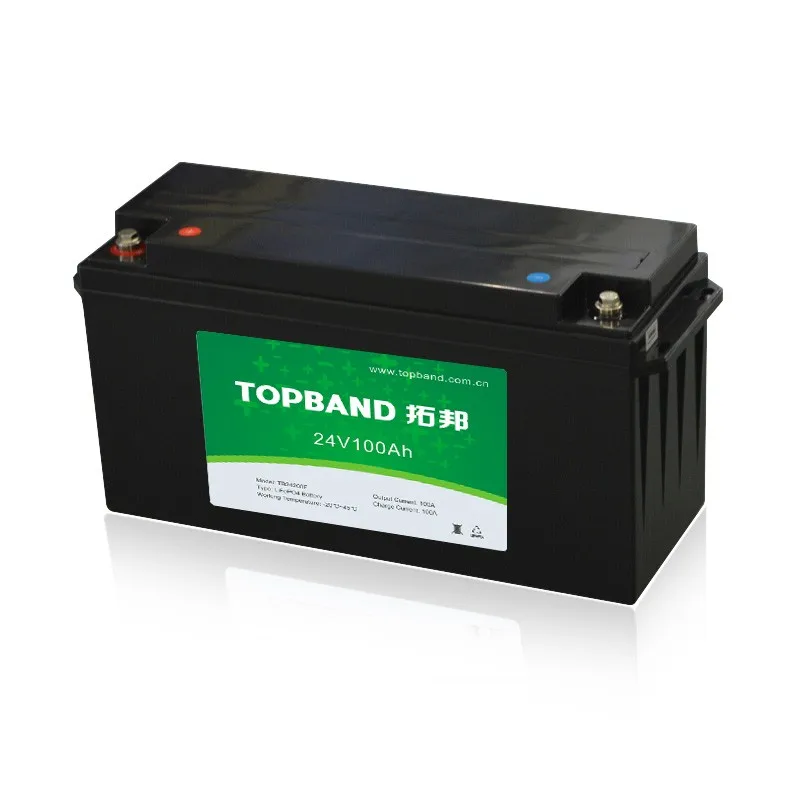

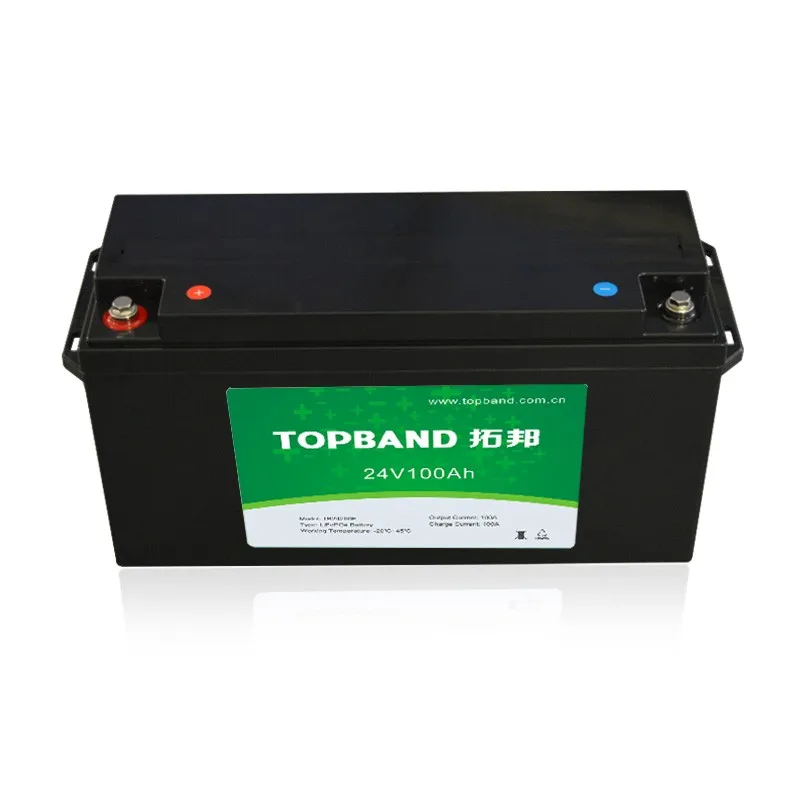

LiFePO4 24V 100Ah lithium battery for UPS/Standby Power


This 24V 100Ah LiFePO4 battery packs have the smaller size and high power. Mainly used for droping in replacement for a lead-acid battery of ~ 24V 150Ah or 200Ah battery packs, meanwhile, it can be replace 2pcs of 12V 100Ah lead acid batteries in series connection.
Product Introduction

Use: 24V stationary/standby power

Compact and light weight: the battery weighs just 24.2kg

Top performance: more power and high thrust even when battery is nearly empty, deep discharge (up to 100%) without negative effects on performance or cycle life

Battery cost: up to 50% lower annual cost than a lead-acid battery

2 year warranty

Caution!: charging is not possible with a standard lead-acid battery charger. A special li-ion battery charger with a CC/CV charging profile (16.8V max 60A) is required.


Product Parameters
NO.
Items
Description
1
Nominal Voltage
25.6V
2
Normal Capacity
100Ah
3
Internal Resistance
≤30mΩ
4
Normal charge voltage
29.2±0.2V
5
Recommended float charge voltage(for Standby use)
27.8±0.2V
6
Max charge current
50A
7
Max discharge current
100A
8
Pulse discharge current
300A for 3s
9
Discharge cut-off voltage
18.4V
10
Cycle life
1500cycles
11
Dimension
450(L)*170(W)*245(H)mm
12
Weight
Approx. 24.2Kg
Product Details Show
Why Choose Us

About us

1, the company professional to do carbon and solid fuels.

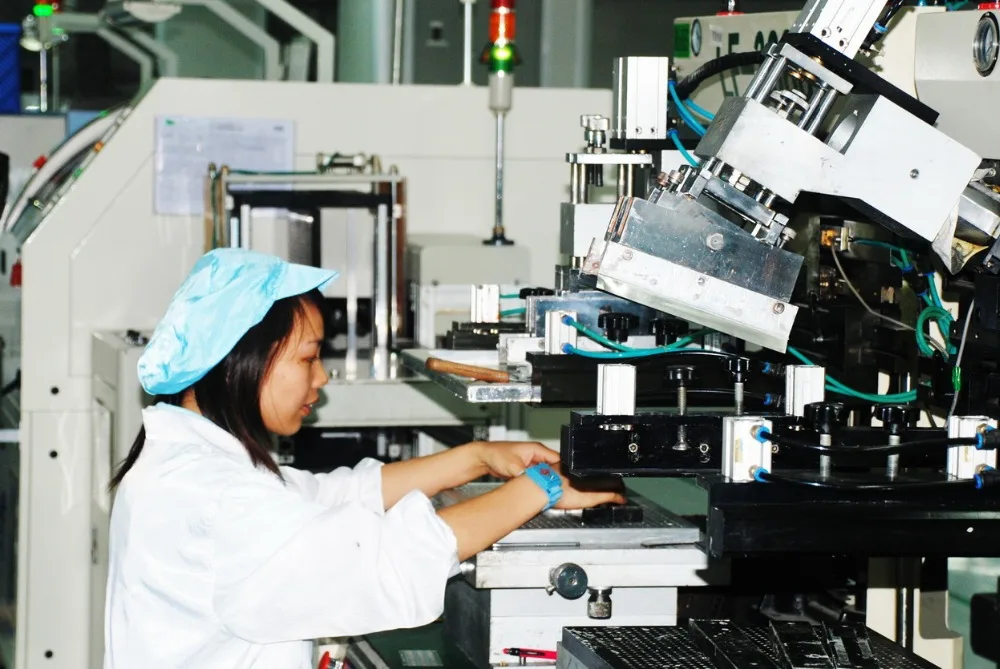

Equipment & technology

2, the quality of solid fuel and production is the biggest supplier in

Service

3, stable product quality , supply, the good faith management

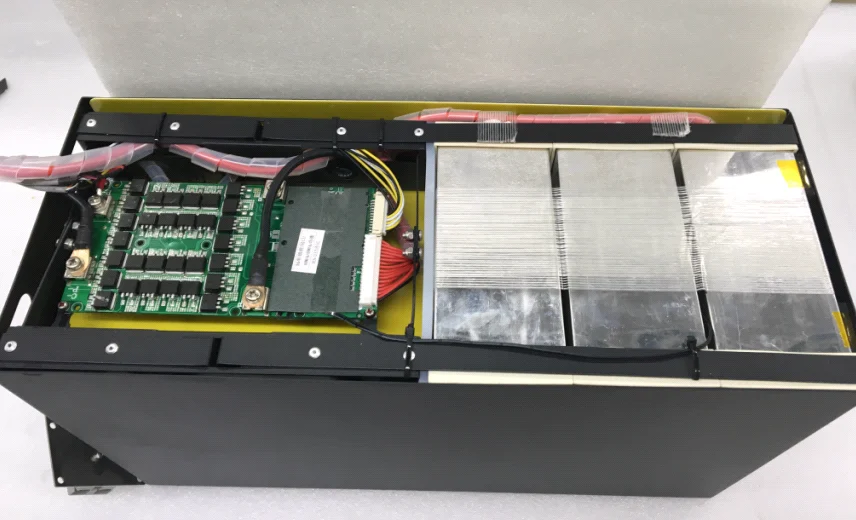

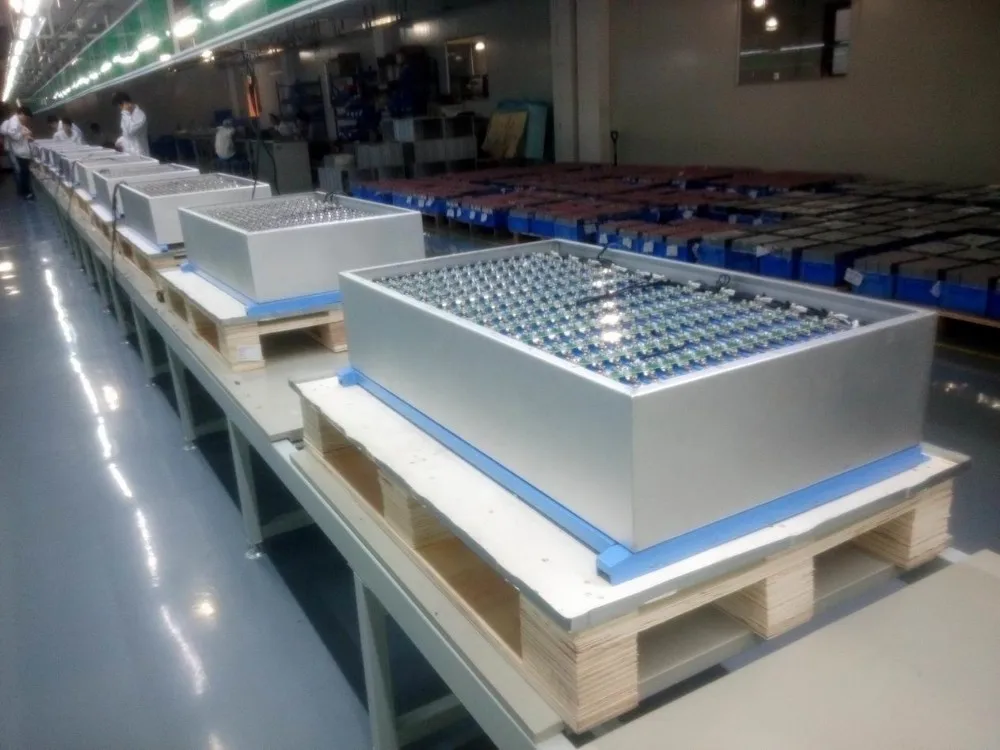

Product Processing
Product Packing
Main Products

TB12200F-S105B_00

Voltage:12.8V
Type:LiFePO4 battery
Capacity:200Ah

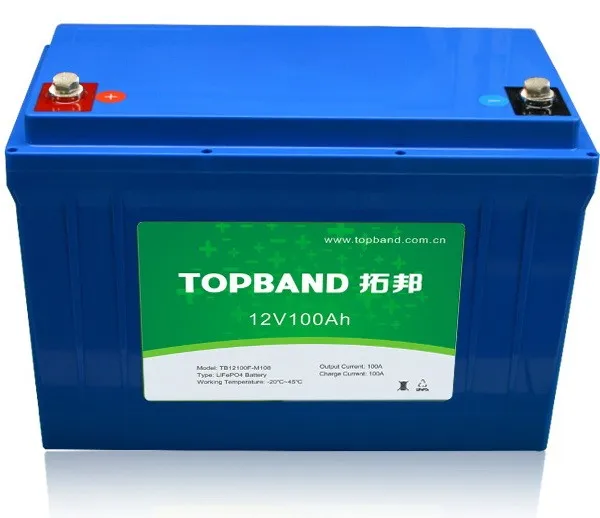

TB12100F-M110A

Voltage: 12.8V
Type: LiFePO4 battery
Capacity:100Ah

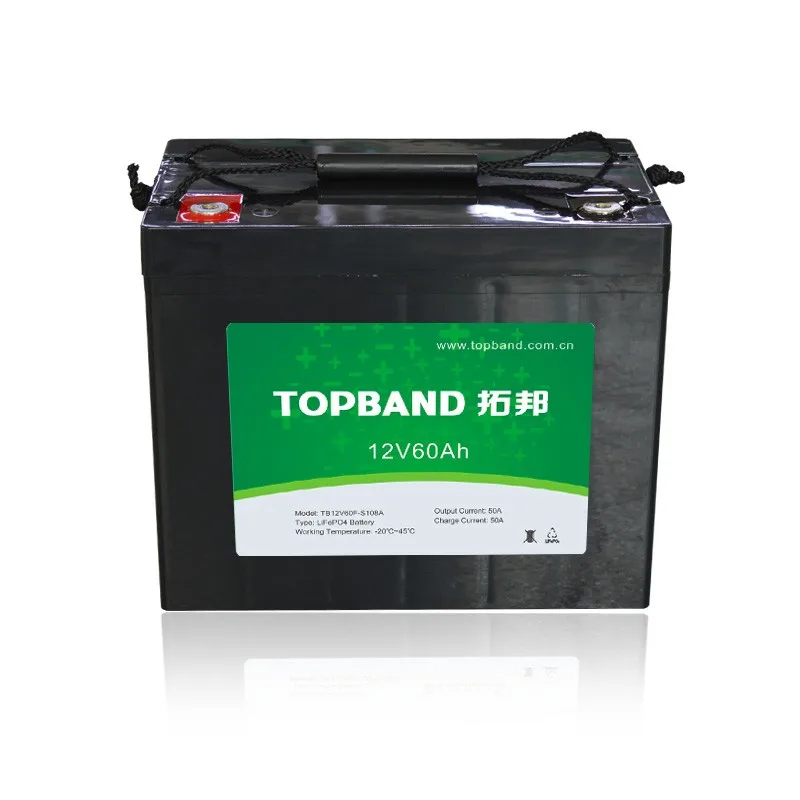

TB1260F-S108A_00

Voltage:12.8V
Type: LiFePO4 battery
Capacity:60Ah

TB24200F-T110B_00

Voltage:25.6V
Type:LiFePO4 battery
Capacity:200Ah


TB24300F-T105A

Voltage:25.6V
Type:LiFePO4 battery
Capacity:300Ah

TB48200F-T110B

Voltage:51.2V

Type:LiFePO4 battery
Capacity:400Ah
