Hot sale High quality 3.2V 25Ah lifepo4 battery cell for battery pack

FOB Reference Price:Get Latest Price
US $20-30 / Pieces | 1000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TOPBAND
Model Number:
TB-027070180D-Fe-25Ah
Type:
lifepo4 battery
Nominal Voltage:
3.2v
Size:
28*71*180mm
Nominal Capacity:
25Ah
Capacity:
25Ah
Max charge voltage:
3.65V
weight:
645g
Cycle Life:
≥2000 cycles
application:
battery packs
Certification:
UL/UN38.3/MSDS
Max discharge current:
5C
continuous discharge current:
2C
Cut-off voltage:
2V
Energy density:
125Wh/kg
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard exporting package
Port
Shenzhen
Lead Time :
35days after the payment

Hot sale High quality 3.2V 25Ah lifepo4 battery cell for Battery Pack

The lithium iron phosphate batteryalsoLiFePO4″ orLFP” called battery, belong to li ion batteries,  is the ideal energy storage for large dischargeshort loading times and cycle stabilityThe all-in-one solar energy storage systemis characterized by high efficiency and is environmentally friendly.

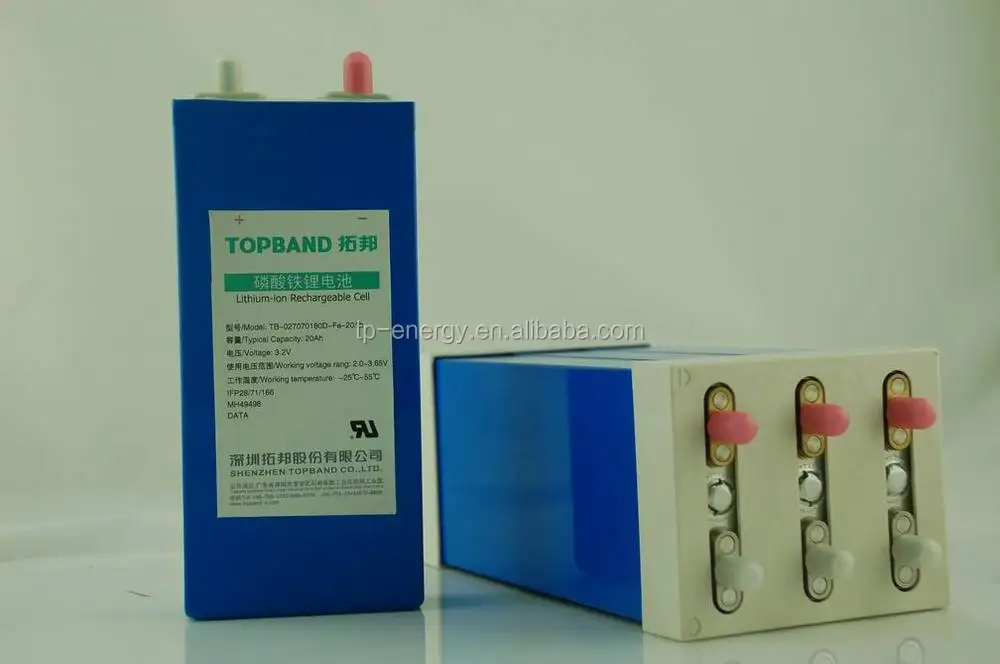

 battery cells

Specification:

 ITEMDESCRIPTION
ModelTB-027070180D-Fe-25Ah
Typeli ion battery cells(LiFePO4)
Nominal voltage3.2V
Typical capacity25Ah
Internal impedance≤40mΩ
Max capacity27Ah
Max charge voltage3.65V
Cut-off discharge voltage2.0V
Max continouse discharge current75A
Pulse dsicharge current125A
Cycle life≥2000cycles
DimensionsH28 X W70 X H27 mm
Operated temperature0℃- 50℃
Weight645g
Storage temperature-20℃- 55℃




The lithium iron phosphate battery is generally considered the safest of all lithium-iron battery types. Because of the solid electrolyte and the cell chemistry LiFePO4 cells are considered to be intrinsically safe. A built-in self-monitoring function detects any deviation within the battery.








Why to choose for our “LiFePO4” = Lithium Iron Phosphate batteries

  • High performance
  • Extremely safe & stable chemistry :
    It is non-explosive & will not catch fire under collision due to overcharging or from short circuit.
  • High discharge rate capability :
    When accelarating, the battery will have better powerful performance than other Lithium and NiMh batteries.
  • Long service life :
    Over 6-7 years, up to 2000 cycles (under 80%DOD)
  • Rapid charging ability :
    The battery can be charged quickly & safely to 85% within half an hour & can stand high discharge rate.
  • Deep Depth of Discharge (DOD) :
    The batteries can be fully (100%) discharged.
  • Lead-acid batteries can oly be discharged till 80%, otherwise they will be damaged. So with the same capacity the LiFePO4 battery is more powerful.
  • High & stable Voltage :
    The voltage is better than the Lead-acid (2V/cell), NiMh & NiCd (1.2V/cell).
  • The voltage of LiFePo4 is 3.2V/cell also the voltage will remain from 3.2V – 2.85V within 85% of its discharge time.
  • No memory effect
  • Environmentally friendly :
    Non-toxic, non-contaminating, no rare metals.
  • CE, UL and SGS/ROHS approved.
  • Wide working temperature :
    Extremely cold & hot weather will not affect the performance of the battery (from -25°C to +70°C)

   dianxin.jpgdianxin 2.jpgdianxin 3.jpgdianxin 4.jpg

Certification

*NOTE: this li ion battery cells to be used for making different pack according customers requests!!

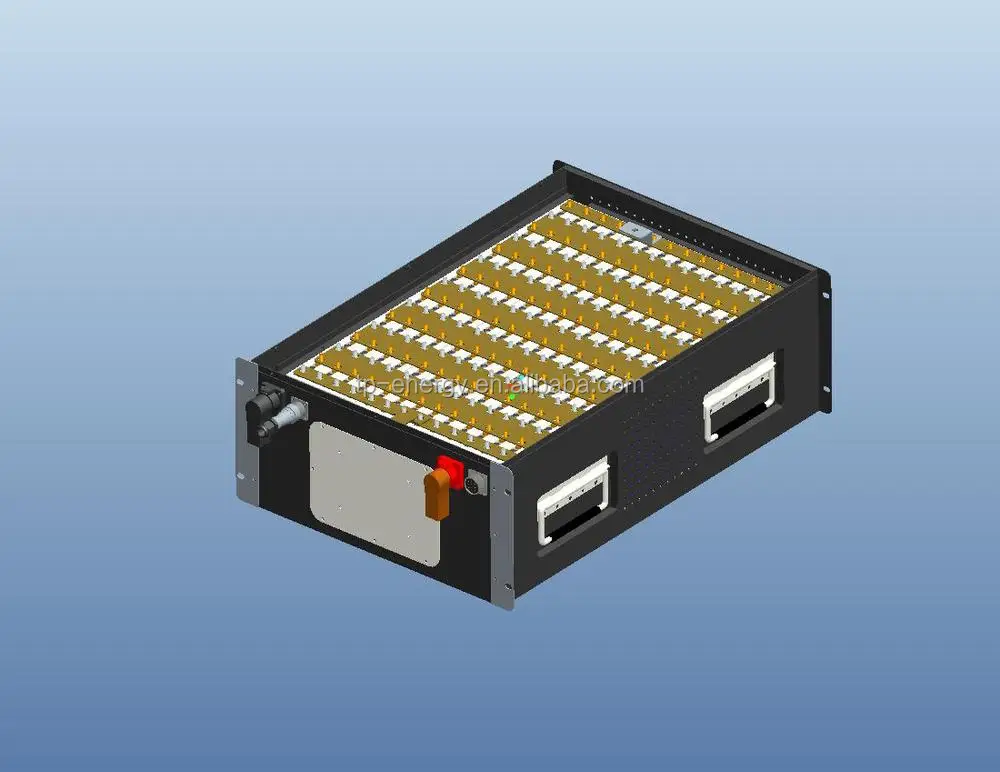

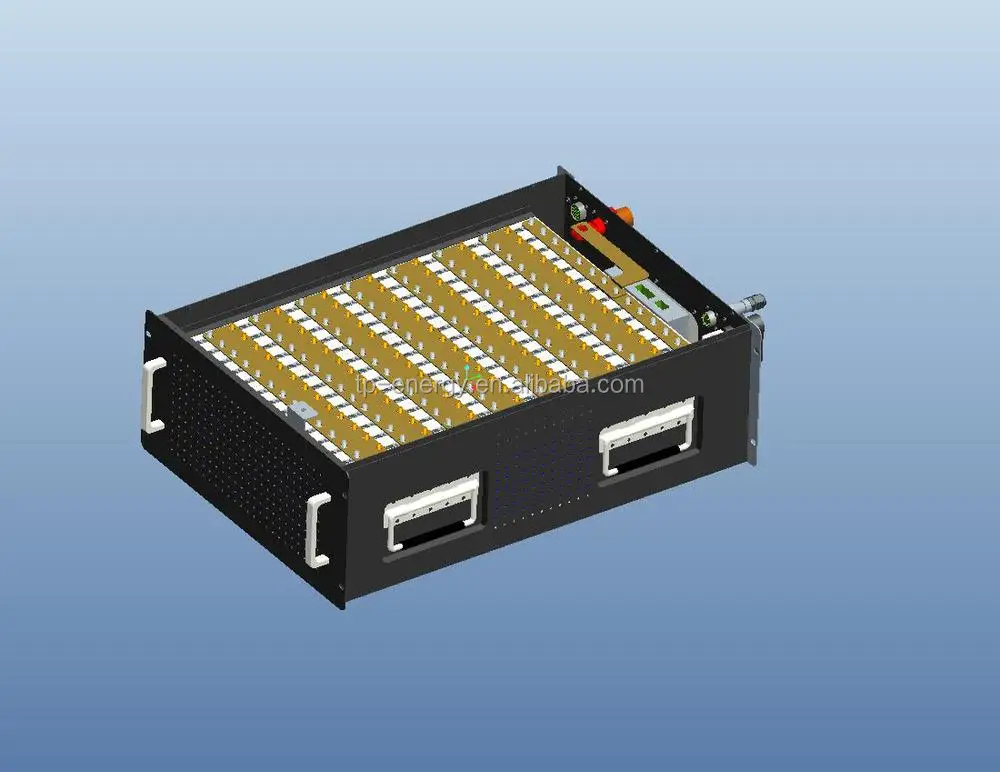

APPLICATION:

.jpg

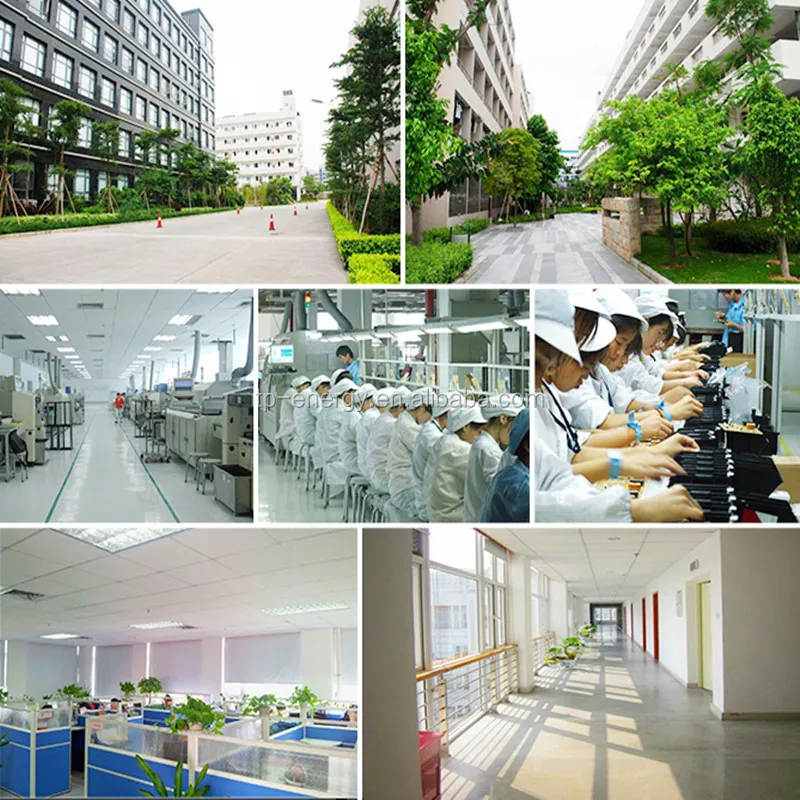

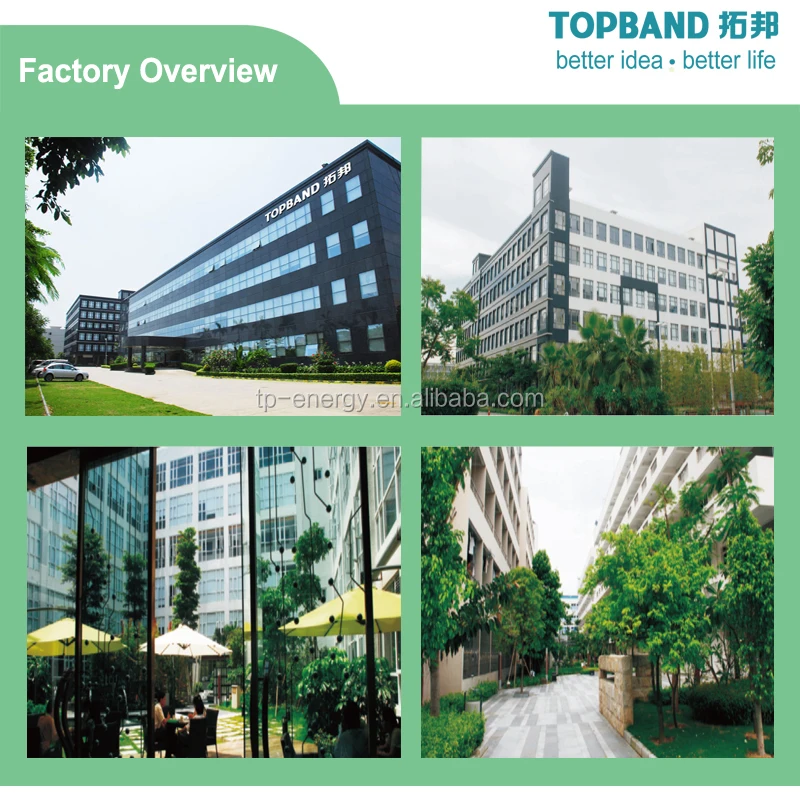

 Equipments1Factory1Factory2
