Rechargeable Li-ion Lithium-ion LiFeO4 lipo battery cell 3.2V 10Ah

FOB Reference Price:Get Latest Price
US $1-26.7 / Pieces | 5 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TOPBAND
Model Number:
TB-027070180D-10Ah
Nominal Capacity:
10Ah
Nominal Voltage:
3.2V
Type:
LiFeO4/LFP
Size:
Prismatic
Supply Ability
Supply Ability:
10,000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
OEM/Stander package
Port
ShenZhen/HK
Lead Time :
7-15DAYS

Specifications

we using nano Raw material,have CE,ROHS,UL etc.certifications.
capacity:10ah,voltage:3.2V, lifepo4 battery cells.



product pics:





  Specifications:



Cell type

TB-027070180D -Fe-10Ah

Typical Capacity

11Ah

0.5C discharge capacity

Minimum Capacity

10Ah

Energy

35.2Wh

Internal Impedance

4.0mΩ

By AC 1 kHZ

Nominal Voltage

3.20V



Cell Weight

640±20g

contain package

Dimension

18mm(L)*65mm(W)*135mm(H)

End-of-charge Voltage

3.65V

At CC mode

End-of-charge Current

0.05C

At CV mode

End-of-discharge Voltage

2.00V



Charge Method

0.5 C CC/CV

180min

Max Continuous Discharge current

30A/3C

Continuous Discharge Time:20 minutes

Max pulse Discharge Current

50A/5C

Continuous Discharge Time: 5 seconds

Cycle Life

2000cycles

1C Continual Discharge :

( 100% DOD)

After 2000cycle,capacity more than 80% nominal capacity

Operating

Temperature

Range

Charging Temperature

0~55°C

Ambient temperature

Cell skin temperature must be <65°C

Discharging

Temperature

-25~55°C

Ambient temperature

Cell skin temperature not exceed 80°C

Storage Temperature

-20~35°C

Recommended temperature range for long term storage is –10 ~ +20°

Shelf Life

2year

Typical value from ship state

Appearance

Without break, scratch, distortion, contamination, leakage and so on









Applications:

·Electric Tools

·Electric Toys And Models

·Portable Power Resources

·Field Medical Treatment

·Prospecting Equipment

·Lineless Lawn Mowers

·Vacuum Cleaners

·Portable Word Processors

·Computer Terminals And Calculators

·Portable TVs

·Tape Recorders

·Lighting.

·Public Power Systems

·Private Solar Systems

·Wind Power

·Lawn Lights

·Street Lamps

·Traffic Lights

·Railway Signal Lamps And Signal Communication Stations



















Introduction of Topand company










About Cathode material of lithium iron phosphate battery, Topband using nano- lithium iron phosphate (LiFePO4, LFP), the advanced nano-technology makes the material particle size uniformity , batch stability , good conductivity ,so our battery was leading the international level in the aspect of characteristics of charge and discharge, high-power and ultra-low temperature (-40 °C) charge-discharge performance etc., the battery performance of the nano have passed through the "National 863 electric vehicle battery test chambers " and " Information Industry Department of Chemical Physics power Products Quality supervision and Inspection Center "assessment test , 2010 Topband nanotechnology became joint stock companies .

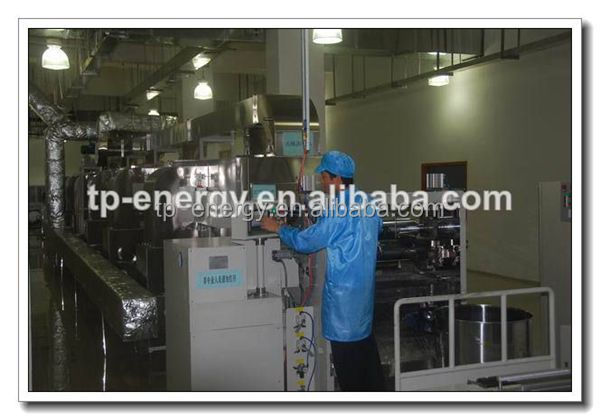

Topband technical R&D team has more than 300 senior industry experts, cooperate with Institute of Tsinghua University and Harbin Industrial University .Our Research Center laboratory has EMC, EMI, machine of constant temperature and humidity , thermal shock testing machine, drop test equipment , capacity sorting cabinet , battery test cabinets , high-precision battery testing system and other equipment , for the product overall reliability experimental test and our product meet the standard of certification such as CE, FCC, UL, IEC, VDE, TUV, CSA, EMARK etc. Also our factory have passed through ISO9001: 2000, ISO14001: 2004, OHSAS18001: 2001, TS16949 and QC080000 system certification , our factory have 6Sigma management ,standards of quality management processes , standardization & specialization process system , first-class manufacturing environment and advanced equipment , reliable SAP's ERP system, all which will shorten lead time to market , lower manufacturing costs, improve asset utilization and provide a strong guarantee.

Currently, Topband company mainly focus on the field of electric vehicle batteries, communication base stations, storage batteries development. Today we are one of the top professional manufacturers in vehicle power lithium battery products, we main produce and sell high-capacity, high-power lithium-ion battery. Topband company has R & D and technical advantages in the field of lithium iron phosphate batteries , craft assembly advantages, integrated solution advantage and quality management advantages. Topband lithium iron phosphate products in the field of core technologies have made a number of achievements, with an invention patents and 5 units utility model patents. The model of 3.2V/25Ah/50Ah/100Ah and 3.2V/180Ah battery has passed the "Northern Automobile Quality Supervision and Inspection and Appraisal experiment” in accordance QC/T743-2006” lithium-ion batteries for electric vehicles," all certification standards. In addition, several models of our lithium batteries has passed the European CE UN38.3 European battery directive tests.

Topband lithium-ion battery with excellent quality, good lead time, competitive price and good reputation to win the praise at home and abroad.









please contact us if  you have  batteries inquiry!
