12V 100AH electric car battery(clean car)

FOB Reference Price:Get Latest Price
US $1-500 / Packs | 50 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TOPBAND
Model Number:
TB-12100F
Composed Type:
4S4P
Type:
Li-Ion
Components:
Lithium ion phosphate
Size:
330*172*228mm
Voltage:
12V
Weight:
apprx.14.8kg
Nominal Capacity:
100Ah
Application:
auto start battery,UPS,e-wheelchair,and solar
battery type:
lifepo4/lithium battery
nominal voltage:
12.8v
package:
alumimum casing or customize
charger:
14.6V 10A
sample:
1-10units
MOQ:
50units
warranty:
2 years
certification:
UN38.3,MSDS,IEC,UL
SupplyAbility
SupplyAbility:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
international standard package or customize
Port
SHENZHEN/HK
Lead Time :
20~30 working days after confirmed order

Specifications

12V 100AH electric car battery(clean car)
1)70% Lighter
2)10X Longer Life
3)Zero Maintenance
4)60% More Energy Density


Company Information



TOPBAND Lithium Iron Phosphate (LiFePO4) battery is the ultimate in weight versus power technology. This is a drop in replacement for your Lead-acid battery and will require no change to your existing system. It can be placed in anything that uses a sealed lead acid battery . Used for deep cycle or energy storrage replacement lead acid batteries in UPS, Telecom, Marine, Solar etc.

LiFePO4 contains no poisonous lead, no acid, and does not create gasses during charge, as traditional Lead-Acid batteries do. Compared to lead-acid, Lithium Iron Phosphate batteries are also extremely light, have much lower self-discharge, do not sulfate, and are environmentally friendly.


TOPBAND Models have a Battery Management System (BMS). BMS monitors the key operational parameters of each cell during charging and discharging such as voltages, currents and internal temperatures.

There are three main objectives common to all Battery Management Systems (BMS) are:



• Protect the cells or the battery from damage from overcharging or discharging too low.
• Prolong the life of the battery with cell balancing.
• Maintain the battery in a safe operating state.


Because of its light weight, safety, excellent thermal stability, good electrochemical properties and high specific capacity is this application of the material very well received.

Dimensions equal to the standard battery for direct replace.


Product Description




PRODUCT SPECIFICATIONS:





Model:TB-12100F
Chemistry:LiFePO4
BMSYes(built inside)
Weight:32.6lbs (14.8kg)
Nominal voltage:12.8V
Typical capacity100Ah 1280Wh
Max Charge voltage14.6±0.05V
Discharger cut-off voltage9.2±0.05V
Max charge current50A
Max continuous discharge current100A
Max pulse discharge current350A (2s)
Operating Temperature:-22°F to +140°F, (-30°C to +60°C)
About 2000 cycles to 80% with 100% DOD under 20 °C~25°C
Size(L*W*H)13"(L) x 6.8"(W) x 9"(H), [330mm(L) x 172mm(W) x228mm(H)]

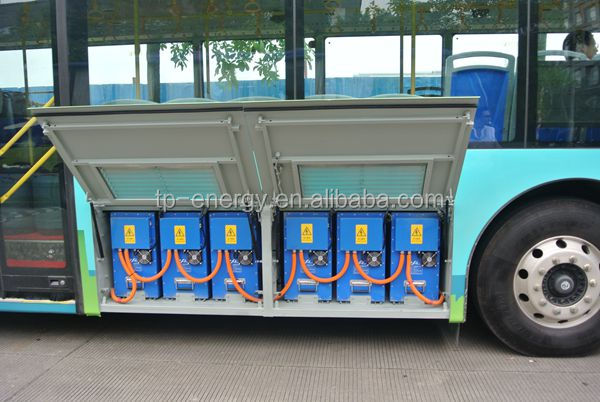

Application:Forklift, clean car, Bus,solar and energy systems,attractions tour,hybrid vehicle and so on





FEATURES:



• Ultra light. 1/5 the weight of lead-acid batteries on average
• Twice to four times the service life of lead-acid batteries
• Drop-in replacement for your OEM battery
• Fast recharge rate
• No explosive gasses during charge, no lead, no acid
• Environmentally friendly





SAFETY:



       • Internal over charge protection.
       • Internal low voltage protection.

       • Internal short circuit protection.

       • Internal cell balancing.

       • Auto Restart function.
       • No presence of toxic substances.



CHARGING:

The TOPBAND energy storage battery is intended to be used as a direct replacement for lead acid batteries used in energy storage systems.  It is best for the battery not to be trickle charged but to use advance chargers that turns OFF charging current when the battery is completley charged at 14.6V.  TOPBAND sells "Smart" chargers for lithium batteries.  Using lead acid chargers that charges up to 16V, along with leaving them ON, will damage the Lithium battery over extended time.


LIFETIME:


       • Expected number of charge cycles over 2,000.

       • Self-discharge rate only 2% per month.

       • Expect 8-10 years of battery life that will reduce your operating cost by half compared to lead acid.



WARRANTY INFORMATION:

2 Year Full Replacement Warranty including battery and charger.


NOTE:

This batteries are to be used for electric car applications,pls tell us before make order if want to use packs in parallel at 12V.

 Caravan






ADVANTAGES (LITHIUM VS LEAD ACID)
