high quality 12v 200ah LiFePO4/lithium batteries

FOB Reference Price:Get Latest Price
US $1,170-1,180 / Packs | 2 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Topband
Model Number:
TB12200F
Composed Type:
4S8P
Type:
Li-Ion
Components:
LiFePo4
Size:
485*170*245mm
Voltage:
12V
Weight:
25.69kg
Nominal Capacity:
200AH
Application:
Solar system/solar street light/fishing boat
Green energy:
Zero Emission
Color:
blue PVC/SLA case
Case:
plastic
Warranty:
2 years
SupplyAbility
SupplyAbility:
1500 Pack/Packs per Quarter
Packaging & Delivery
Packaging Details
soft pvc,plastic case,iron case or as your own request
Port
FOB shenzhen
Lead Time :
Within 20 days once order confirmed

Specifications

12v 200ah deep cycle battery
Environmental Friendly
Smaller and Lighter
1C- 10C discharge current
Long cycle life

Items

Specifications

Model

TB12200F-A01

Battery Type

LiFePO4 (LFP)

Cell assembled mode

4S8P

Nominal Voltage

12.8V

Nominal Capacity

200Ah/0.2C

Internal Impedance

≤100mΩ

Nominal Charge Voltage

14.6±0.05 V

Discharge cut off Voltage

8±0.2V

Max .Charge Current

50A

Max Continuous Discharge Current

100A

discharge over current  protection

500A~800A

Recover of over current protection

Recover of Charge

Short circuit protection

Not

Charge method

CC/CV(constant current/constant voltage)

Cycle life

80%  After 1000cycle,capacity more than 80% nominal capacity

Weight

26kg

Size(L*W*H)

485*170*245mm

Operating Temperature

Charge:       0°C--45°C

Discharge:   -10°C--60°C

Storage Temperature

suggest 25±5°C

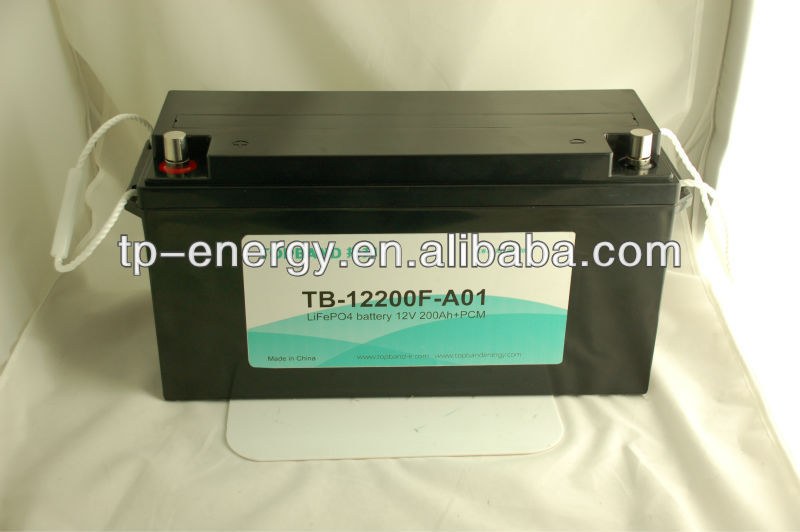

12v 200ah lithium batteries.JPG

12v 200ah lithium batteries

Topband is OEM in lifepo4 battery,looking forward to your enquiry of our products.Sincerely hope we can be good partners in lithium Industry.

LiFePO4 battery vs. Lead Acid Battery
Battery Type

LiFePO4 Battery

Lead Acid Battery

Nomenclature

LFP Battery

Lead acid Battery

Easiness of manufacturing

More difficulty

Easy

Voltage fluctuation in working

Remains stable with different output

Voltage fluctuation based on output

Cycle life
(Residual capacity over 5%)

1500 ~ 2000 cycles  (Eqivalent of around 5 years life)

150~200 times (Life is estimated 1 year)

Capacity

Very stable and very little affection by output current

Suffer a big affection in by output current. Capacity will be much smaller than rated capacity when output current is large.

Depth Of Discharge (D.O.D.)

99%

50% ~ 60%

Self discharge rate (per month)

1~1.5% (Capacity remains over 80% even the battery is idled for one year)

30% (Battery capacity drops near to zero if it is unused for 3 months)

Fast charge capability

Capable of using 1C~3C charging rate (Charge to full capacity can be finished within 20 minutes)

Maximum charging rate is 0.2C (It needs at least 6 hours to fully charge the battery)

Max. discharge rate

10C~30C

1C~5C

Discharge working temperature °C

-20~+75

-20~+55

Memory effective

None

None

Thermal stability

Outstanding

Acceptable

Weight (Compare to the same capacity)

1/2 of weight to lead acid battery

comparatively heavier weight

Installation

Any direction

Upright position is necessary

Safety

Mild warm, no explosion and firing

Dangerous of acid leakage

Environmental conform-ability

Conforms to RoHs standard

Violet RoHs standard;Lead and sulphate acid are pollutant

Disposition of used battery

No recycle required

Needs special recycle, after treatment utility
