12v 200ah LiFePO4 battery with PCM and SLA housing China supplier

FOB Reference Price:Get Latest Price
2 Pack/Packs (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TOPBAND
Model Number:
TB12200F
Usage:
energy storage,solar products,UPS,starting battery
Voltage:
12v
Sealed Type:
Sealed
Maintenance Type:
General
Size:
485*170*245mm
Weight:
25.69KG
Nominal Capacity:
200AH
color:
black/blue PVC
warranty:
2 years
green energy:
zero emission
Material:
copper,graphite,lifepo4
SupplyAbility
SupplyAbility:
5000 Pack/Packs per Month
Packaging & Delivery
Packaging Details
soft pvc,plastic case,iron case or as your own request
Port
Shenzhen
Lead Time :
With 25 days after payment

Specifications

1 Super Performance
2 Low Self-discharge
3 Extended Battery Life
4 High Temperature Resistant
5 High Safety

TOPBAND 12V 200Ah lithium/lifepo4 battery, with high quality and compatitive price,can be used for solar products,energy storage,electric vehicle,Hybrid EV,communication base etc.





Items

Specifications

Model

TB12200F-A01

Battery Type

LiFePO4 (LFP)

Cell assembled mode

4S8P

Nominal Voltage

12.8V

Nominal Capacity

200Ah/0.2C

Internal Impedance

≤100mΩ

Nominal Charge Voltage

14.6±0.05 V

Discharge cut off Voltage

8±0.2V

Max .Charge Current

50A

Max Continuous Discharge Current

100A

discharge over current  protection

500A~800A

Recover of over current protection

Recover of Charge

Short circuit protection

Not

Charge method

CC/CV(constant current/constant voltage)

Cycle life

80%  After 1000cycle,capacity more than 80% nominal capacity

Weight

26kg

Size(L*W*H)

485*170*245mm

Operating Temperature

Charge:       0°C--45°C

Discharge:   -10°C--60°C

Storage Temperature

suggest 25±5°C





Compared with lead acid battery,lifepo4 battery has more advantages,such as long lifespan,high performance,no memory effect etc.



 Characteristic:

LiFeP04 Batteries

♥ high energy efficiency

 smaller and lighter than equivalent VRLA

 in excess of  1,600 charge/full discharge cycles

 can be discharged to 100% without damage

 one of the safest battery types

♥ thermal stability up to 60d

 high current rating and long cycle life

 excellent charged storage performance

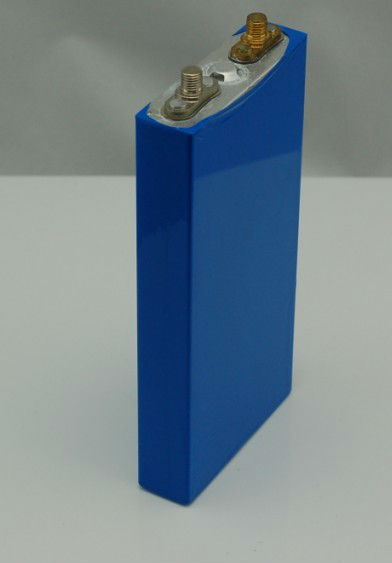

Battery cell

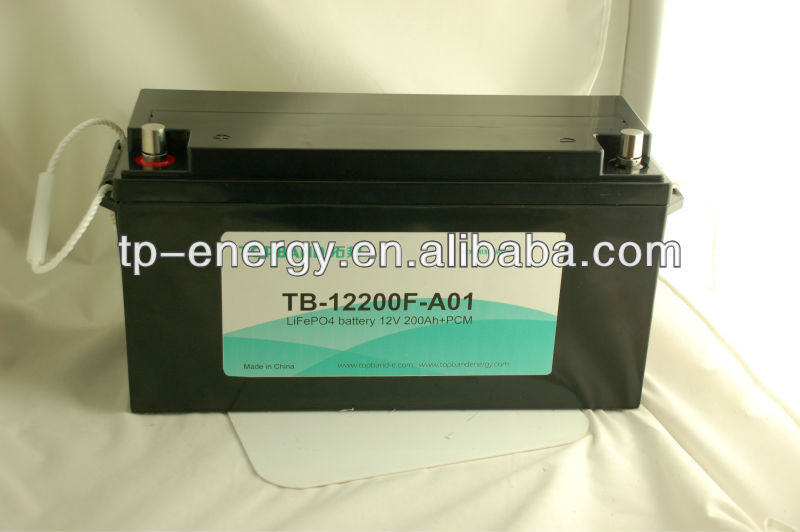

 12v 200ah LiFePO4  battery

 12v 200ah LiFePO4  battery.JPG

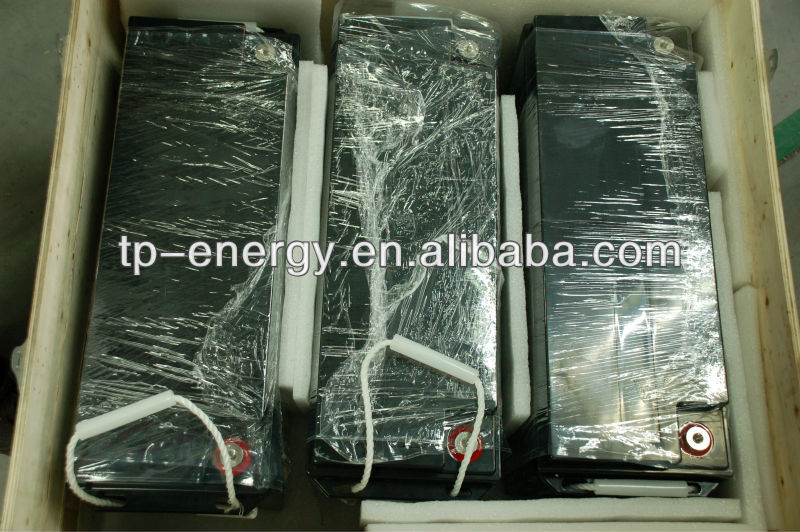

Package(wooden case)



12v 200ah LiFePO4  battery.JPG



 Company



12v 200ah LiFePO4  battery.jpg

Map

 12v 200ah LiFePO4  battery





 In order to meet your needs,pls confirm those questions as below:



1Where is your application?



2What is the rated power?



3What is the continuous discharge current and the max discharge current do you need?
