LiFePO4 Battery Pack 48V 120Ah with BMS

FOB Reference Price:Get Latest Price
1 Pack/Packs (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TOPBAND
Model Number:
TB-48120F(48V 120Ah)
Composed Type:
flexible
Type:
Li-Ion
Components:
LiFePO4,copper,graphite
Size:
700x480x220mm
Voltage:
48V
Weight:
77kg
Nominal Capacity:
120AH
Application:
Electric cars, Golf cart, Tour car, Solar battery
color:
black.blue PVC
Certificate:
UL,RoHS,MSDS,UN38.8,IEC
Warranty:
2year
Battery cells:
3.2V 10/12/15/20/25AH
Supply Ability
Supply Ability:
100000 Pack/Packs per Month
Packaging & Delivery
Packaging Details
PVC,SLA case,aluminum alloy case,iron case
Port
FOB Shenzhen
Lead Time :
Within 25 days after payment

Specifications

48V 120Ah electric car battery
1. LiFePO4 battery factory
2. No memory effect
3.No pollution
4. BMS protection

48V 120Ah electric car battery with BMS

48V120Ah battery

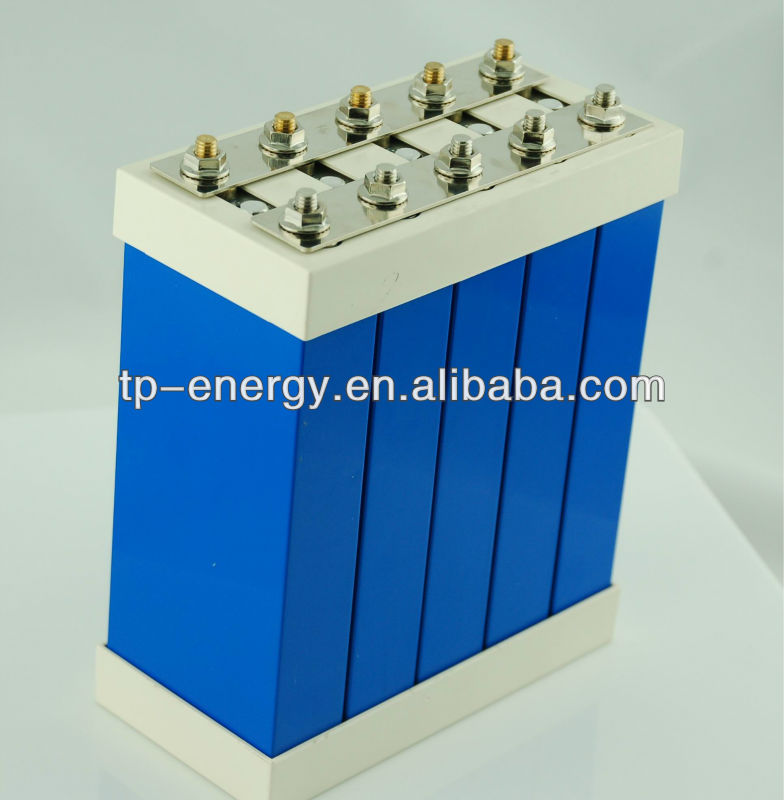

LiFePO4 battery cel- 2



certification



Specification:

Model

 TB-48120F

 Type

 LiFePO4 battery

Voltage

 48V

 Capacity

 120Ah

 Assemble structure

 16S6P

 Max continous discharge current

 100A

 Max pulse discharge current

 450A at 3 seconds

 Size

 700*480*220MM

 Weight

 Aprox: 77Kg

 Charging temperature

 0~ 45

 Discharging temperature

 -20~60

 Storage temperature

 5~ 35

Application

Electric cars, Golf cart, Tour car, Solar battery



Feature:

1.Long life, large capacity and good shock resistance

2.Low self-discharge and good discharge performance at low temperature

3.Strong charging acceptance and quick-charging capability

4.Strong over-discharge resistance and charge retention

5.Maintenance-free and no acid or water for maintenance in usage

6. Ultra light. 1/5 the weight of lead-acid batteries on average

7.  No explosive gasses during charge, no lead, no acid

8.Environmentally friendly




Our battery main application :



1.Telephone switchboard, electric equipments, medical-equipments, power instruments and meters
2.Computer, uninterrupted power source (UPS)
3.Power transmission and transformer station, switch-control, and accident lighting
4.Fire fighting, safety device, and alarm monitoring
5.Automatic office system
6.Radio communication system
7.Emergency lighting and car/ship starting system
8.Portable electric appliances and mining system
9.Traffic and navigation signal lamp



 Our advantage :

Systematic quality control:

SAP(ERP) system typical application in Shenzhen, Teamcenter, Advanced testing machine, Full inspection shipment, all components from orginal factory or authority distributor

 Price:

with fatory direct sale whole sale price, especially to the volume orders

Lead time:

different workshop to meets fast orders and normal big orders

R&D:

over 10years more than 350 engineer in our company, mutual share R&D centre cooperated with Tsinghua University

Service:

one stop solution, quick reaction, we also have the motor, controller, LED, HID department for total system cooperation

Security:

well known public listed company,2 year guarantee

LiFePO4 cell:

advanced nano lifepo4 battery material technology, with first class energy density, wide working temperature range, especially to very cold winter, light weight

BMS battery management system:

Over 16 years high reputation intelligent controller of PCM/BMS, sophisticated battery management system



Service provided by US:

• Quick response to clients' enquiries whithin 24hrs

• Exclusive and unique solution can be provided to our clients by our experienced and  professional engineers and researchers

• Solve the problems be prompt if anything wrong with our products' quality



Company gate





1



workshop 3

Standard and battery solution will provide according to your requirements!
